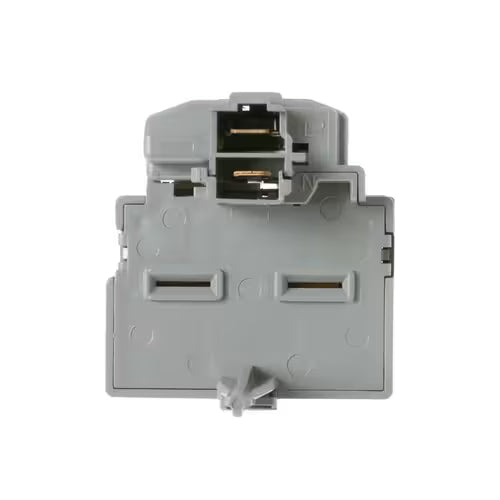

WR07X10097 Relay & Overload Assembly front view”

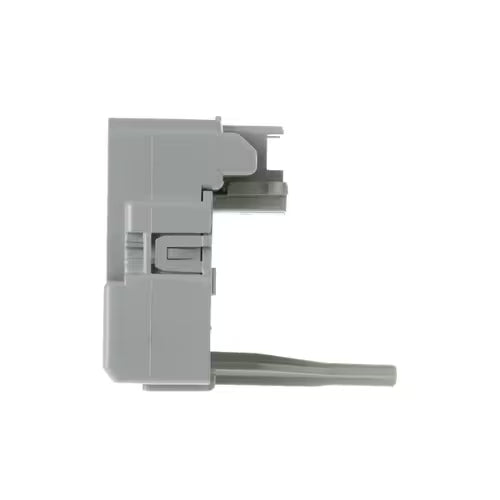

WR07X10097 part labelled WR-07X10097 close-up

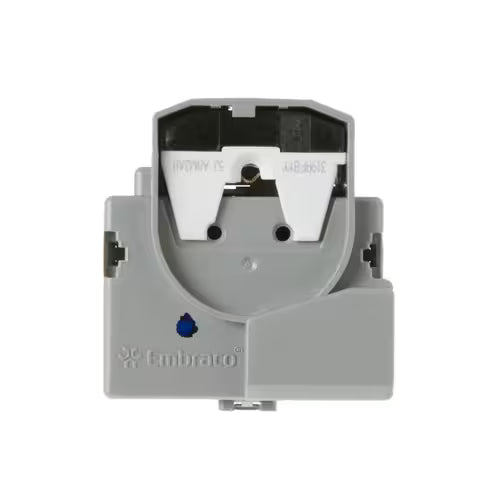

WR07X10097 installation into compressor compartment GE refrigerator
Roll over image to zoom in Click on image to zoom
WR07X10097 Relay & Overload Assembly front view”WR07X10097 part labelled WR-07X10097 close-upWR07X10097 installation into compressor compartment GE refrigerator

WR07X10097 Relay & Overload Assembly (Compressor Start / Over-Temperature Protection)

A3 Appliance Supply, Inc.
Price:
$114.68

Login to see wholesale pricing.

Description

Description
Restore dependable performance to your appliance with the WR07X10097 Relay & Overload Assembly, a high-quality start-relay and overload protector designed for compressor systems. This component delivers the initial “kick” to start the motor and then guards against overheating or excessive current draw. Don’t rely on symptoms alone—please confirm compatibility with your maintenance technician prior to ordering.

This part is ideal for technicians or savvy DIYers looking to replace a failing relay/overload combination unit. It’s built to OEM specifications and offers a solid solution for many models from brands such as GE, Haier, Monogram and more. reliableparts.com+2partselect.com+2

Features & Benefits

  • Start-Relay and Overload Protector in one compact unit — simplifies replacement and reduces potential fail-points. partselect.com+1

  • OEM-compatible fit ensures reliable performance on supported models — designed by GE. partselect.com+1

  • Protects compressor motor from overheating or short-circuiting due to excessive current draw — extends appliance life and prevents costly failures. partselect.com+1

  • Durable build and materials that resist cracking or early failure — dependable for long-term service. amazon.com+1

  • Straightforward installation — suitable for warranty repairs or technician-led maintenance with minimal downtime.

Common Symptoms That Indicate Replacement

  • The compressor tries to start but fails, or buzzes and clicks repeatedly without running. partselect.com+1

  • The appliance (refrigerator) isn’t cooling properly or is not maintaining temperature.

  • The relay/overload unit shows visible signs of damage (burn marks, melted casing, rattling when shaken).

  • The compressor overheats or trips the circuit (overload condition).

  • Extended runtime without effective cooling signals internal motor stress which can originate from a failing overload relay.

If you observe these symptoms, consult your maintenance technician. This part may solve the problem, but verifying the cause prevents wasted effort.

Compatible (Partial) Model List
Models typically from GE and related brands where this part is listed as compatible:

Note: This is a partial list. Use your appliance’s full model number and consult your technician for full compatibility confirmation.

Cross Reference
Replaces or is equivalent to part numbers:

Compatibility Notes

  • Always verify your appliance’s full model number and the existing part number before purchasing. The WR07X10097 is designed specifically for certain compressor systems; if your appliance differs, this part may not be suitable. geapplianceparts.com+1

  • Because the compressor circuit is involved, a failure may also indicate other underlying issues (e.g., sealed system leak, main board fault, motor problem). The relay/overload assembly replacement is most effective when it's confirmed as the root cause.

  • Installation should be performed by a qualified technician, especially when dealing with compressor systems, refrigerant, or sealed compartments. Reading the appliance’s service manual is highly recommended.

  • After replacement, monitor the appliance for several hours of normal operation to ensure the issue is resolved.
