Description
🧾 Description

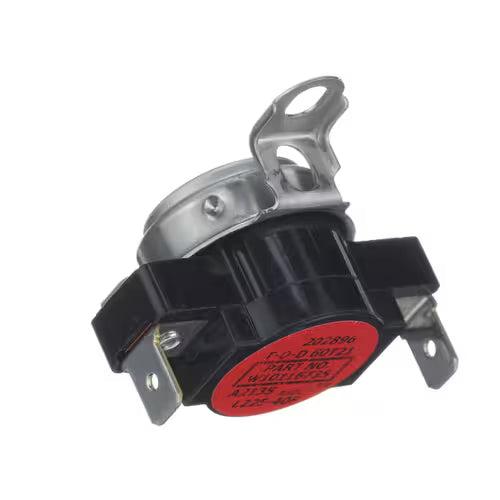

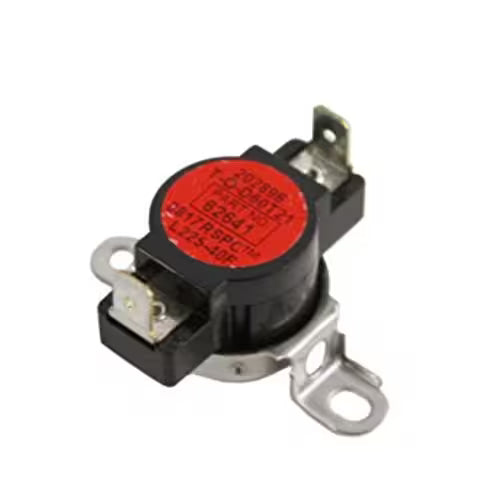

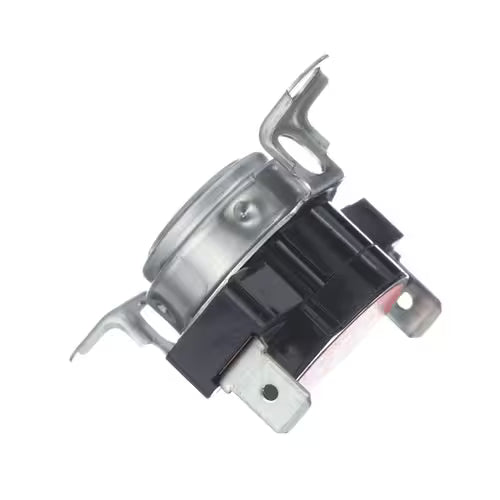

Restore safe temperature regulation in your dryer with the WPW10116735 High-Limit Thermostat, a genuine OEM replacement manufactured by Whirlpool. This thermostat is designed to shut off the heating circuit if the dryer overheats—protecting the heating element, the thermostat chain, and helping avoid fire or damage risk. Appliance Parts Experts+3Whirlpool Parts+3Home Depot Appliance Repair+3
Often used in both gas and electric dryers from Whirlpool and its affiliated brands, this component is a critical safety part. If your dryer is tumbling but not heating, or overheats, this part may be the reason. ⚠️ Note: Always disconnect power (and gas supply if applicable) before servicing. Confirm your dryer’s model number to ensure compatibility.
⚙️ Features & Benefits
-
✅ Genuine OEM part — engineered to Whirlpool’s factory specifications for proper fit, reliable performance and durability. Whirlpool Parts+1
-
🔥 Critical over-temperature protection — shuts off the heater circuit if temperatures exceed safe thresholds (rated approx L225-40°F). Home Depot Appliance Repair+1
-
🔧 Direct replacement installation — drops into the original mounting and terminal layout without modification.
-
🧺 Enhances dryer lifespan & safety — by ensuring the heating circuit is properly regulated, reducing risk of overheating, longer dry times, and component failure.
⚠️ Common Symptoms
You should consider replacing the WPW10116735 if you observe any of the following:
-
Dryer drum tumbles but no heat or very low heat generated.
-
Dryer works but takes much longer than usual to dry despite clean lint screen / proper venting.
-
The heating element cycles off prematurely or the dryer overheats and trips a safety cutoff.
-
On inspection, the thermostat shows open continuity or visible discoloration/overheating. Appliance Parts Experts
🔧 Compatible Model List
This thermostat fits many dryer models from brands including Whirlpool, Kenmore, Maytag, Amana, Crosley, and others sharing the same internal components. Example models (not exhaustive):
-
Many models listed under part listing cross-reference WPW10116735 on appliance parts sites. Appliance Parts Company+1
Always check your dryer’s data plate (typically inside the door frame or on the rear panel) to verify exact compatibility before ordering.
🔁 Cross Reference
This part replaces or is compatible with various numbers including:
-
WPW10116735 (OEM) Home Depot Appliance Repair
-
W10116735 (legacy) Appliance Parts Experts
-
Additional cross-ref numbers: Y62641, 61210, R0611009, 62641 (as listed by parts catalogs) Home Depot Appliance Repair+1
🧩 Compatibility Notes
-
Confirm your dryer’s model number label before ordering to ensure correct fit.
-
This thermostat is typically mounted on the heater housing or exhaust channel of the dryer—make sure to access that location and ensure safe removal and installation.
-
If this part failed due to excessive heat, you should inspect related items such as the lint filter, exhaust vent, heater element, and blower fan because restricted airflow is a common root cause.
-
After installation, run a test cycle (without load) to ensure the thermostat and heating circuit operate correctly (normal warm air and safe cycling).
