Description
🧾 Description

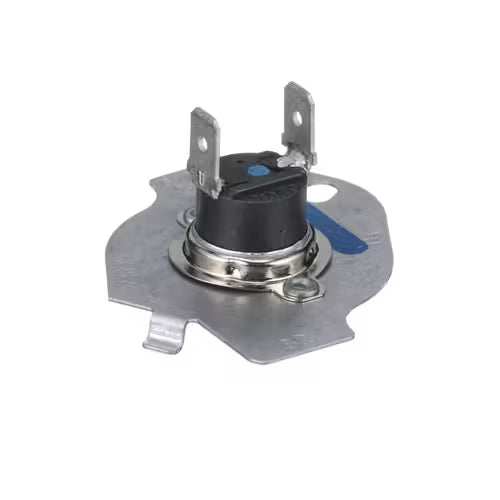

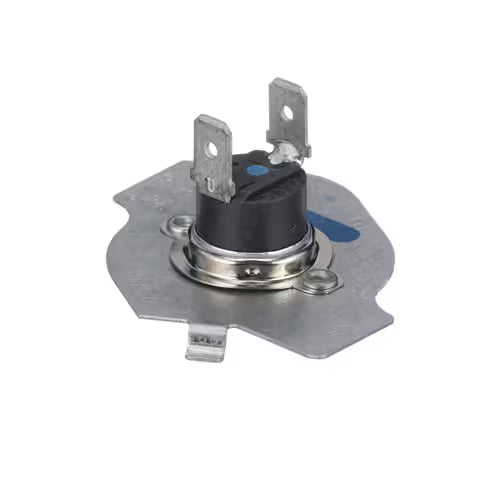

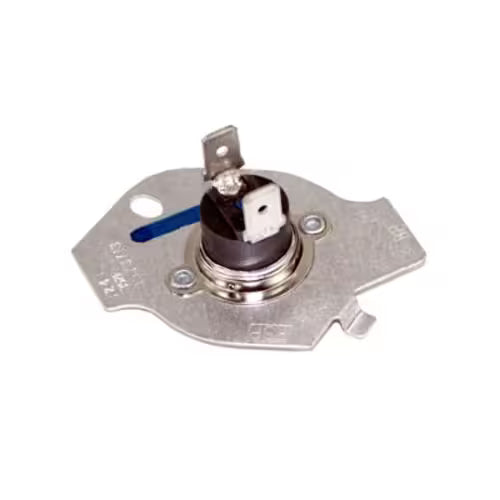

Ensure safe heating operation of your dryer with the WP8573713 Thermal Cut-Off Fuse, a genuine OEM part from Whirlpool. This safety device cuts power to the heating element or burner if the dryer overheats beyond a safe limit, protecting against fire and damage. McCombs Supply+2Whirlpool Parts+2
A blown fuse is non-resettable — if it fails, your dryer may tumble but won’t heat, or may stop heating entirely. Replacing with the WP8573713 restores proper safety protection and dependable performance. ⚠️ Note: Always disconnect power (and gas if it’s a gas dryer) before servicing. Verify your model number to confirm fit. Maytag Replacement Parts
⚙️ Features & Benefits
-
✅ Authentic OEM part — built to Whirlpool’s original equipment specifications for fit and safety. Whirlpool Parts
-
🔥 Over-temperature protection — shuts the heating circuit off when temperatures go above safe thresholds (rated approx 352°F). McCombs Supply+1
-
🔧 Direct replacement — designed to drop into the original wiring/assembly, reducing complexity and installation time.
-
🛡️ Improves safety & reliability — by replacing it you restore the heating safety path, which helps prevent repeated failures and potential damage to the dryer.
⚠️ Common Symptoms
Replace the WP8573713 if you notice any of these:
-
Dryer tumbles but does not heat, even though the drum rotates and power is present.
-
Dryer stops heating mid-cycle or shuts off the heater circuit unexpectedly.
-
On inspection the fuse reads open (no continuity) or shows visible signs of overheating or damage.
-
You’ve already replaced thermostats or heating elements but the problem persists (the fuse may be the root cause).
🔧 Compatible Model List
Fits many dryer models from the Whirlpool, Kenmore, Maytag, Amana, Crosley families that use this fuse design. Some example models include those referenced in parts listings:
-
Maytag: MGD7205RF0, MGD7020RF0 Sears Parts Direct+1
-
Whirlpool: WGD5100HC3, WGD5500XW1 Sears Parts Direct+1
Note: Always confirm the exact model number on the dryer’s data plate to ensure compatibility.
🔁 Cross Reference
Replaces or is compatible with the following part numbers:
-
8573713 (legacy)
-
WP8573713 (OEM) Whirlpool Parts+1
-
AP6013467, PS11746693 (alternate references) McCombs Supply
🧩 Compatibility Notes
-
Before ordering, check your dryer’s model number (typically located inside the door frame or on rear panel) to verify fit. Home Depot Appliance Repair
-
This fuse is usually mounted on or near the heating assembly/blower housing. Ensure proper access and wiring when replacing.
-
If the fuse failed due to overheating, inspect related components (lint trap, venting, blower) because restricted airflow or faulty heating elements often cause repeated fuse blows.
-
After replacement, run a test heat cycle to ensure proper heating and safe operation.
