🧾 Description

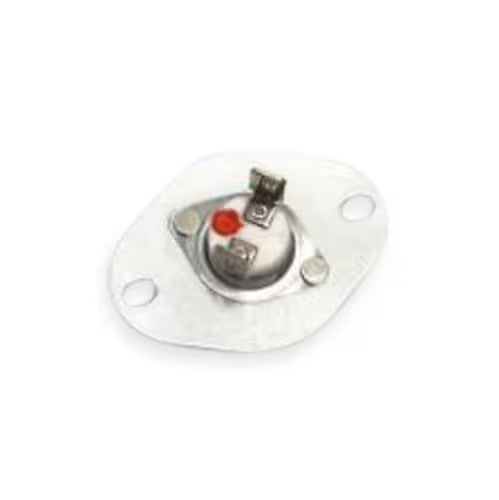

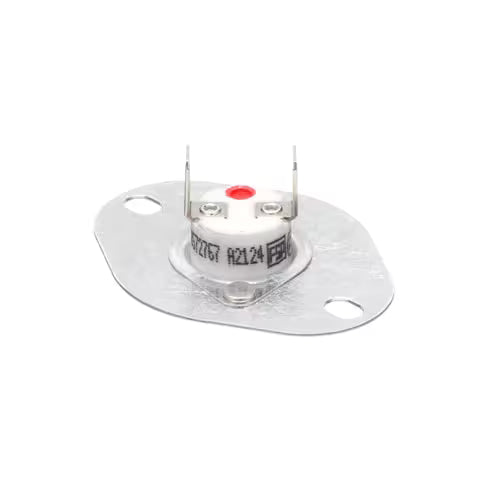

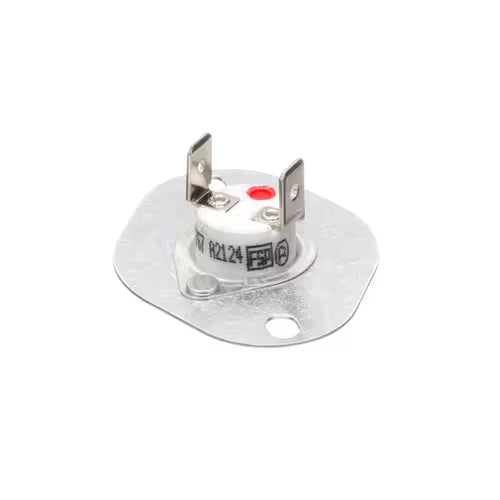

Restore safe and proper heating control in your dryer with the WP8572767 Thermal Fuse, a genuine OEM replacement part from Whirlpool. This thermal fuse acts as a one-time cutoff that shuts the heating element or burner off if the dryer overheats beyond the designed temperature limit. Whirlpool Parts+2Sears Parts Direct+2
When this fuse fails (opens), you may find that the dryer tumbles but fails to heat, or the dryer simply stops mid-cycle. Replacing it ensures the dryer’s heating circuit is protected and the unit operates safely. Home Depot Appliance Repair+1
⚠️ Note: Disconnect power (and gas supply if it’s a gas dryer) before servicing. Verify your dryer model number and that this exact part matches your unit.
⚙️ Features & Benefits
-
✅ Authentic OEM part — manufactured to Whirlpool’s original equipment specifications for safety and fit. Whirlpool Parts+1
-
🔥 Over-temperature protection — cuts power to the heating circuit when excessive heat builds, preventing damage or fire risk. HD Supply+1
-
🔧 Direct replacement — installs in place of the original fuse with minimal tools; uses the factory wiring or connection point.
-
🛠 Improves reliability & safety — restoring this fuse helps ensure your dryer heats properly and safely, minimizing service calls and potential hazards.
⚠️ Common Symptoms
Replace the WP8572767 if you notice any of the following:
-
Dryer tumbles but does not heat (motor runs, drum spins, but no heat).
-
Dryer starts heating briefly and then cuts out, or doesn’t complete a cycle due to heating failure.
-
The fuse has no continuity on a multimeter (open circuit) and shows signs of overheating or charring.
-
The dryer’s heater or burner repeatedly fails, signaling that a safety device has tripped.
-
Visible damage or discoloration where the fuse mounts. (Referenced in parts listings) Sears Parts Direct
🔧 Compatible Model List
Fits many dryer models from brands such as Whirlpool, Kenmore, Maytag, Admiral, and others built on common platforms.
Some example compatible models include (but are not limited to):
-
Whirlpool models: LER3622PQ2, 3XWED5705SW1, 3RMED4905TW0. Sears Parts Direct+1
-
Kenmore/Admiral dryers that use the same fuse number.
Always check the model number tag (usually inside the door frame or on the dryer rear panel) to verify compatibility.
🔁 Cross Reference
Replaces and is compatible with the following part numbers:
-
WP8572767 (OEM) Home Depot Appliance Repair
-
8572767 (legacy format) Sears Parts Direct
-
AP6013436, PS11746662 have been listed as equivalent references.
🧩 Compatibility Notes
-
Always verify your dryer’s model number and confirm the heating element/fuse location before ordering.
-
This fuse is often mounted on or near the heater housing, burner chamber, or exhaust path—ensure proper removal and safe installation.
-
If the fuse failed due to excessive heat buildup, you should also inspect the venting system, lint trap, and blower housing for obstructions or damage—improper airflow commonly causes fuse/overheat issues.
-
After replacing the fuse, run the dryer on a short cycle empty to verify proper operation and heating restoration.
