🧾 Description

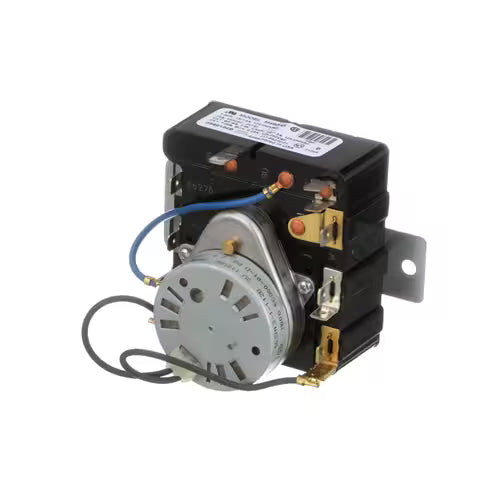

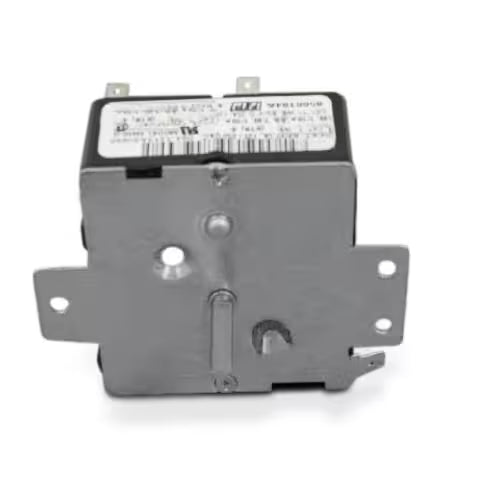

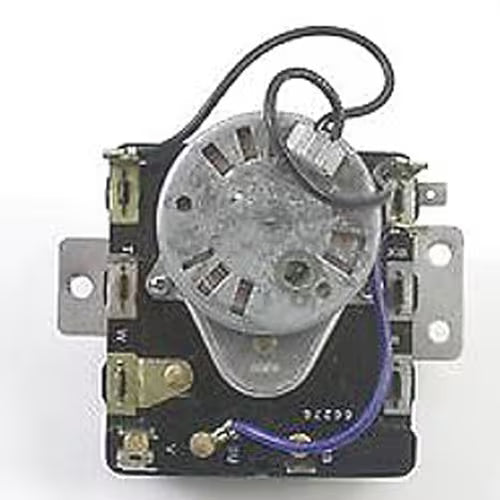

Restore correct cycle sequencing in your dryer with the WP8566184 Timer Assembly, a genuine OEM part from Whirlpool/Maytag. This timer governs key functions of the dryer — including the heating, tumbling and cool-down phases. Whirlpool Parts+2Alliance Laundry Parts+2
When the timer fails, common symptoms include a dryer that: runs but won’t heat, won’t advance the cycle, runs endlessly, or doesn’t start properly. Installing the WP8566184 restores proper timing and control. maytagreplacementparts.com+1
⚠️ Note: Always disconnect the dryer from power before replacing the timer. Confirm your model number to ensure compatibility.
⚙️ Features & Benefits
-
✅ Genuine OEM quality — built to Whirlpool/Maytag factory specifications for fit, function and durability. Whirlpool Parts+1
-
🔄 Restores full cycle control — ensures the dryer completes its heat-tumble-cool sequence correctly.
-
💡 Fixes timing/control issues — ideal for dryers that skip phases, won’t shut off, or won’t start.
-
🔧 Direct replacement — mounts in place of the original timer using existing wiring and mounting points.
-
🧺 Improves efficiency & reliability — by restoring accurate timing, you reduce wear on other components and improve overall performance.
⚠️ Common Symptoms
You may need to replace this timer if your dryer exhibits any of the following:
-
Dryer won’t advance or stops mid-cycle.
-
Dryer won’t heat, despite the drum turning.
-
Dryer runs continuously without finishing the cycle.
-
The timer knob doesn’t turn, clicks, or skips settings.
-
Timer appears damaged or shows visible signs of wear. maytagreplacementparts.com
🔧 Compatible Model List
This timer fits many dryer models from the Whirlpool, Maytag, Kenmore, Crosley, Amana families. According to Maytag/Alliance data: includes models such as 7MMGL6741TW0, 7MMGL6741TW1, 7MWGD1602AW0, 7MWGD1730YW0, MED5700TQ0, MED5700TQ1. Alliance Laundry Parts
(Always verify the exact model number on the dryer’s rating plate before ordering.)
🔁 Cross Reference
Replaces or is compatible with the following part numbers:
-
WP8566184 (OEM) maytagreplacementparts.com
-
8566184 (legacy) Alliance Laundry Parts
🧩 Compatibility Notes
-
Confirm your dryer’s model number label (typically inside the door frame or on the rear panel) to ensure you’re ordering the correct timer variant.
-
The timer is usually mounted behind the front control panel, connected to the main wiring harness.
-
If timer failure appears to be caused by excessive heat or wear, inspect related components (door switch, thermal fuse, high-limit thermostat) and ensure proper venting.
-
Proper installation and matching wiring/pin configuration are critical—mis-installation can cause improper cycling or damage.
