🧾 Description

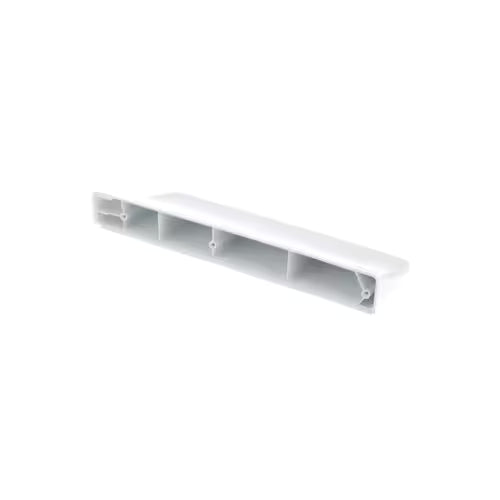

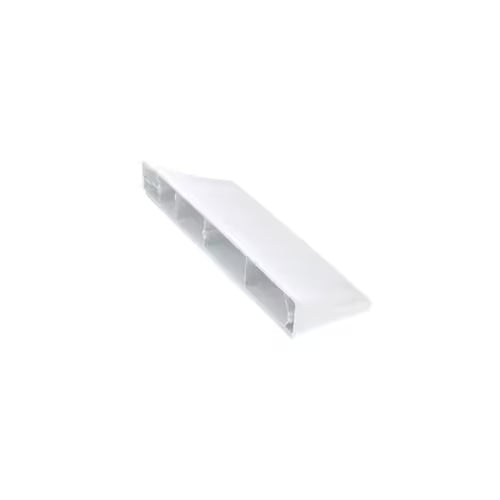

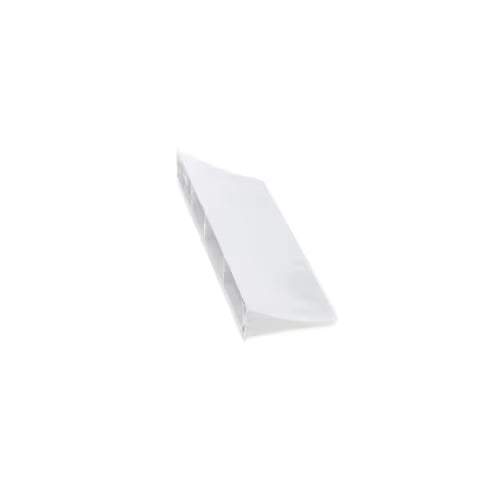

Restore smooth and even drum rotation with the WP692490 Drum Baffle (Tall), a genuine OEM part designed by Whirlpool. This tall baffle (also referred to as a drum vane) attaches to the inside of the dryer drum and helps lift and tumble the clothes for better drying — while also supporting the drum’s internal motion and preventing improper contact with the cabinet.
Over time, the original baffle can crack, detach, or warp, resulting in scraping noises, uneven tumbling, banging, or even damage to the drum’s interior surface. Replacing the baffle with WP692490 ensures your dryer tumbles correctly and quietly, enhancing both drying performance and longevity. ⚠️ Note: Always disconnect power before servicing. Verify your dryer’s model number to confirm compatibility. shopjimmy.com+2PartSelect+2
⚙️ Features & Benefits
-
✅ Genuine OEM part — engineered to meet Whirlpool’s factory standards for fit, durability and performance. PartSelect+1
-
🔄 Tall vane design — effectively lifts and tumbles laundry for even drying and prevents load clumping.
-
💪 Durable molded plastic construction — resists warping or cracking under heat and rotational stress.
-
🔧 Direct-fit installation — replaces the original baffle with minimal tools and hassle.
-
🧺 Improves dryer efficiency & quiet operation — restores proper drum support, reducing unwanted noises and vibration.
⚠️ Common Symptoms
You should consider replacing the WP692490 if you notice any of the following issues:
-
Drum scrapes or rubs against the dryer cabinet or front panel during operation.
-
Banging or thumping noises when the drum turns (often as the baffle hits the body).
-
Uneven tumbling of clothes (one side stays low, others tumble poorly).
-
Visible cracking, detachment or missing baffle vane inside the drum.
-
Excessive wear inside the drum surface or on the drum edge near the baffle mounting location.
🔧 Compatible Model List
Fits a broad range of dryers from brands such as Whirlpool, Kenmore, Maytag, KitchenAid, Crosley (and other affiliated brands).
Some known compatible models include (but are not limited to):
-
Model examples: CEDS563MQ0, CEDS774JQ1, CEP2960JQ0, CGP2961EW0, 3HLER5437JQ1, MGDC465HW0 shopjimmy.com
-
Note: Always verify the exact model number from the tag inside your dryer before ordering.
🔁 Cross Reference
Replaces and is compatible with part numbers:
-
692490, 693884, 786057, W10306677 Fix+1
-
WP692490VP (variant / packaging designation)
🧩 Compatibility Notes
-
Always check the model number label on your dryer (typically inside the door frame or on the rear panel) before purchasing to ensure compatibility. PartSelect
-
While replacing this baffle, inspect the adjacent components such as the drum rollers, belt, and rear drum seal—a worn baffle often coincides with other wear.
-
When installing, ensure the baffle is mounted securely and flush against the drum; loose vanes can cause noise or damage.
-
Regular maintenance: Keep the lint trap and vent system clean to avoid drum overheating and premature part failure.
