Description

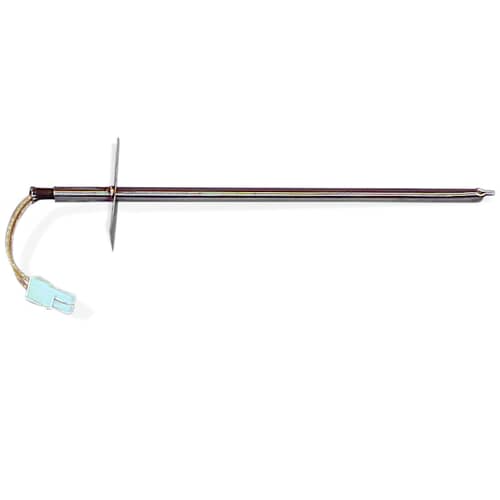

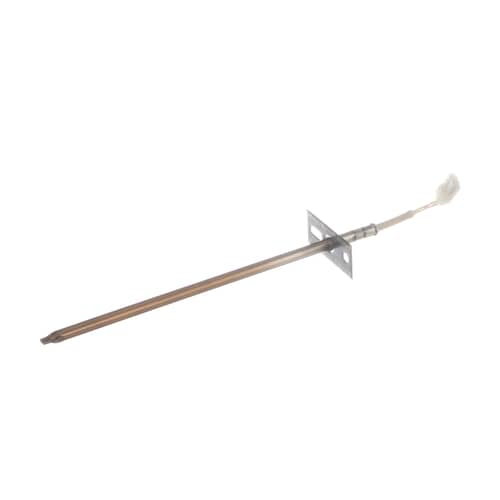

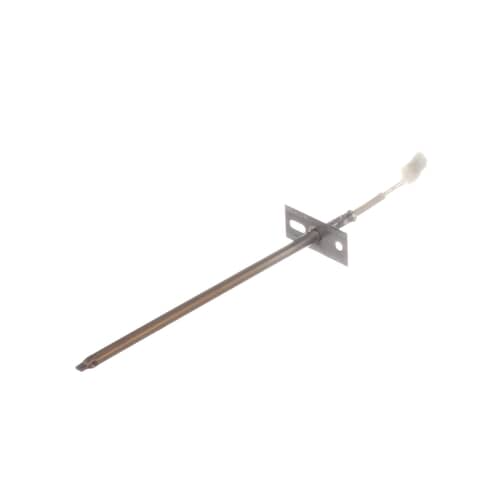

Ensure accurate and consistent oven temperature readings with the Whirlpool WPW10181986 Range Temperature Sensor. This genuine OEM part is a metal probe (thermistor) located inside the oven cavity, typically at the rear wall. It works in conjunction with the oven's electronic control board to measure the internal temperature and regulate the heat cycle. If the oven is overheating, underheating, or displaying temperature-related error codes, replacing this sensor probe is the common repair. The sensor should read approximately 1080–1100 ohms of resistance at room temperature if tested with a multimeter.
Features & Benefits
- Genuine OEM temperature sensor probe for electric and gas ovens.
- Monitors the oven's internal temperature and reports data to the control board.
- Resolves issues of overheating, inconsistent baking, or slow preheating.
- Probe dimensions are approximately 7 inches long.
Common Symptoms That Indicate Replacement
- Oven temperature is inaccurate by more than 50 degrees Fahrenheit.
- Oven overheats or runs too hot, or conversely, does not heat evenly.
- Control panel displays temperature sensor error codes (e.g., F6, E1).
- Little to no heat when baking.
Compatible Models Include (Works with Whirlpool family ranges)
- Whirlpool FES330KW0
- Maytag GR475LXKS0
- Kenmore 110.60012000
- KitchenAid WFE775H0HZ
Cross-Reference / Replaces: WPW10181986, W10181986, AP6016450, 8273902
Compatibility Note: Unplug the range before installing this part. The sensor is typically secured by two screws inside the oven cavity.
