Description

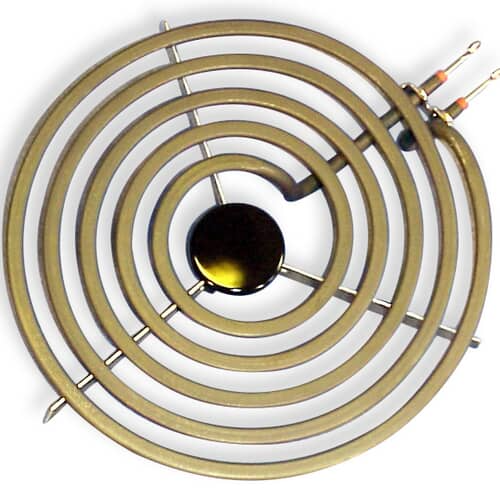

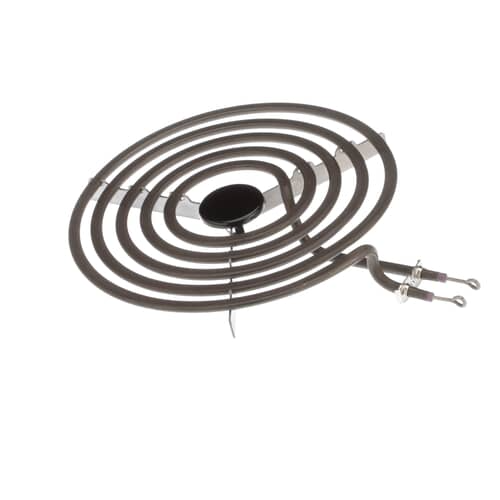

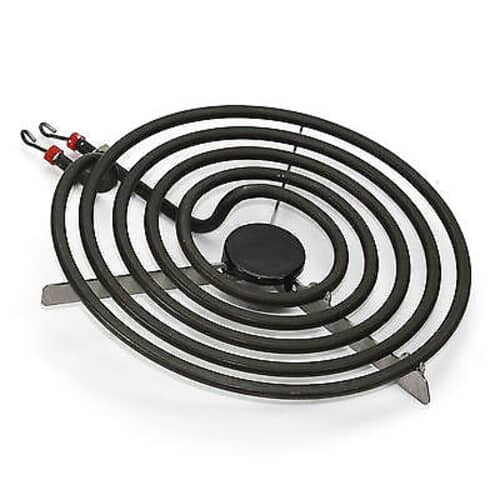

Restore the highest heat level on your electric cooktop with the Whirlpool WP660533 8 Inch Electric Range Coil Surface Element. This genuine OEM-style plug-in element is the large coil burner, typically rated at 2600 Watts (2600W) and 240 Volts. The element features 5 turns and a standard looped terminal end designed to plug directly into the burner receptacle on the cooktop. This large element is essential for boiling water quickly and heating large pots, and should be replaced if it fails to heat up or is visibly damaged.
Features & Benefits
- Genuine OEM coil element, 8-inch diameter, rated for 2600 Watts.
- Features a 5-turn coil and Y-frame support for stability.
- Plug-in terminals allow for quick, tool-free installation and removal.
- Resolves issues of non-heating burners or slow cooking times.
Common Symptoms That Indicate Replacement
- The large burner fails to heat up or glow red when turned on.
- Element coil is cracked, broken, or shows signs of burn-through.
- Element shorts out or trips the circuit breaker (often indicates internal coil failure).
- Element is warped, preventing cookware from sitting level.
Compatible Models Include (Works with many electric ranges)
- Whirlpool RE953PXKT
- Kenmore 20113
- Maytag (various compatible models)
- Amana ACR4503SES0
- Roper 2216\*20
Cross-Reference / Replaces: WP660533, 660533, 3289, AP6010190, PS11743367, 308380
Compatibility Note: This is an 8-inch, 2600W plug-in element. Always disconnect power to the range at the circuit breaker before attempting to remove or install this part. It is recommended to check the burner receptacle (terminal block) for corrosion when replacing the element.
