Description

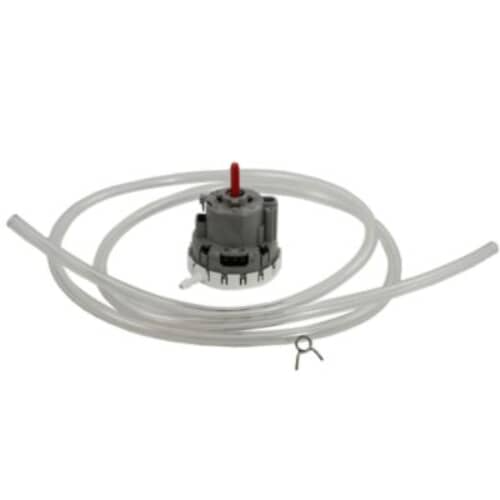

Ensure your washing machine fills to the correct level using the Whirlpool W10337780 Water Level Pressure Switch Kit. This genuine OEM assembly is responsible for detecting the water volume in the wash tub and sending a signal to the control system to stop the water inlet valve. If your washer overfills, underfills, or refuses to advance from the fill stage, this switch is often the cause. The kit is designed for simple replacement, often requiring only basic hand tools.
Features & Benefits:
- Accurate Water Sensing: Monitors the water level by reading air pressure transmitted through the included hose.
- Cycle Control: Signals the washer control to stop filling and proceed to the wash or rinse phase.

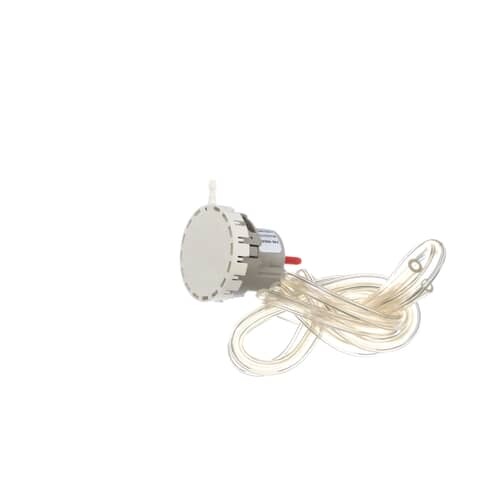

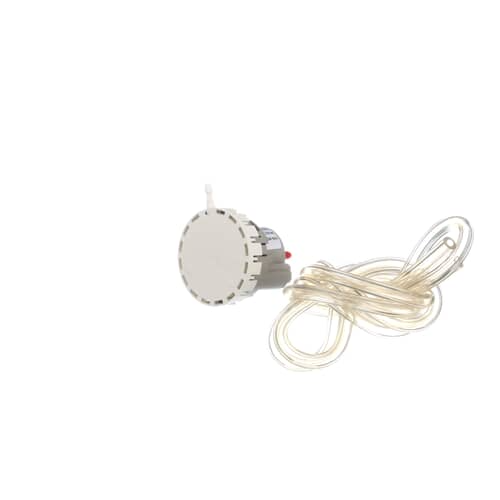

- Complete Kit: Includes the pressure switch and the necessary air pressure hose for proper function.
- OEM Quality: Genuine Whirlpool part ensures dependable fitment and reliable electrical switching.
Common Symptoms That Indicate Replacement:
- Washer fills with too much water (overfilling) or too little water.
- Washer fails to advance from the initial fill portion of the cycle.
- The machine does not fill with water at all.
Compatible Models Include:
- 1CLSR7010PQ0
- KAWS677EQ0 (KitchenAid)
- LXR7244PQ0
- 7MLGR7620MW0
- TAWS700PQ0 (Estate)
Cross-Reference / Replaces:
W10337780, 3366847, 3950421, AP4567828, PS3408118
Compatibility Note:
Always disconnect the washer from electrical power and shut off the water supply before beginning the repair. For safety, the entire kit contents should be replaced as a set.
