Description

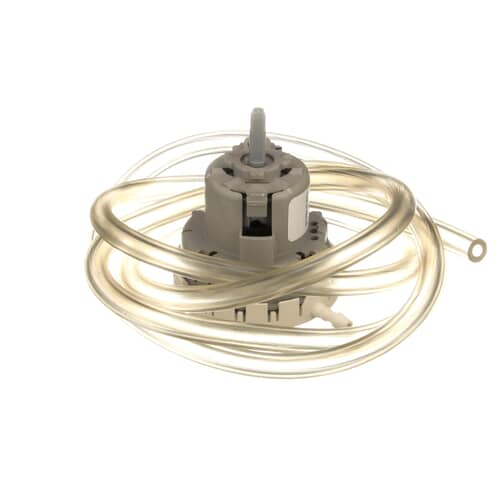

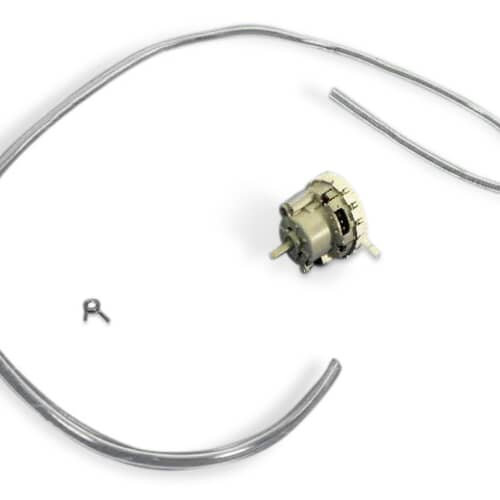

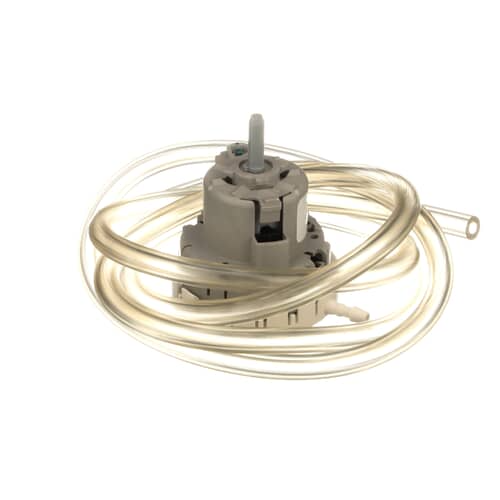

Restore correct water level control to your washing machine with the Whirlpool W10335056 Water Level Pressure Switch. This genuine OEM component is essential for preventing overfilling or underfilling the wash tub by sensing the air pressure exerted by the water level via an attached hose. If your washer fails to stop filling or will not start its cycle due to a latch signal error, this switch is a primary suspect. The kit includes the switch itself and a pressure hose for installation.
Features & Benefits:
- Accurate Sensing: Monitors the water level by measuring air pressure transmitted through the attached hose.
- Cycle Progression: Signals the control system when to stop filling and advance to the next stage (wash/rinse).
- OEM Quality: Ensures precise electrical contact and reliable operation, meeting factory standards.
- Simple Replacement: Can often be replaced easily with basic tools after accessing the control panel area.
Common Symptoms That Indicate Replacement:
- The washer overfills or underfills the tub consistently.
- The cycle stops unexpectedly or fails to advance past the fill stage.
- The washer does not fill with water at all.
Compatible Models Include:
- 11027802690 (Kenmore)
- LXR9245EQ1
- 7MWED5500BW0
- RAS8445KQ0 (Roper)
- 66513772K600 (Kenmore)
Cross-Reference / Replaces:
W10335056, AP4566382, 1617123, 3366846, PS3408073
Compatibility Note:
Always unplug the washer and shut off the water supply before performing this repair. It is often recommended to check the lid switch and water inlet valve before replacing the pressure switch.
