Description

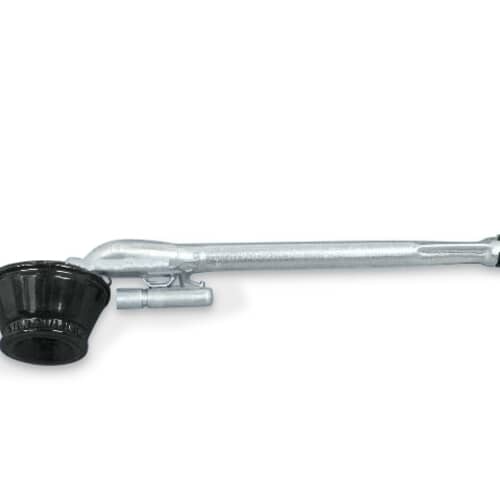

Restore the efficient gas delivery and reliable ignition for one of the rear burners on your cooktop with the Whirlpool 74005189 Gas Range Rear Burner Assembly. This genuine OEM part is the complete sealed gas burner unit, including the metal gas delivery tube (burner manifold), the burner base/head, and the igniter electrode. This burner is typically used for a rear-mounted position on the cooktop and should be replaced if the burner is cracked, severely corroded, or fails to light, indicating damage to the gas port or the igniter.
Features & Benefits
- Genuine OEM sealed gas burner assembly designed for rear cooktop positions.
- Includes the metal burner manifold tube, burner head, and pre-installed igniter.
- Ensures correct gas flow and consistent heat distribution to the burner cap.
- Resolves issues where the burner fails to light or flames are weak/uneven.
Common Symptoms That Indicate Replacement
- Rear burner fails to ignite or requires multiple attempts to light.
- Burner has a weak, yellow, or dancing flame, indicating a possible internal blockage or corrosion.
- The metal gas supply tube is cracked or leaking.
- The burner head is visibly cracked, warped, or missing chunks of material.
Compatible Models Include (Works with Jenn-Air, Maytag, and related gas ranges/cooktops)
- Jenn-Air AG202MG12
- Whirlpool SC8720EDB0
- Maytag CSG9900AAE
- Jenn-Air SVD48600P
- Jenn-Air CCG406S
Cross-Reference / Replaces: 74005189, 4381670, AP4094574, 705402, 71001934
Compatibility Note: Shut off the gas supply and disconnect electrical power before installation. This assembly is designed for the Rear burner position. Installation requires securing the burner head to the cooktop and connecting the igniter wiring underneath.
