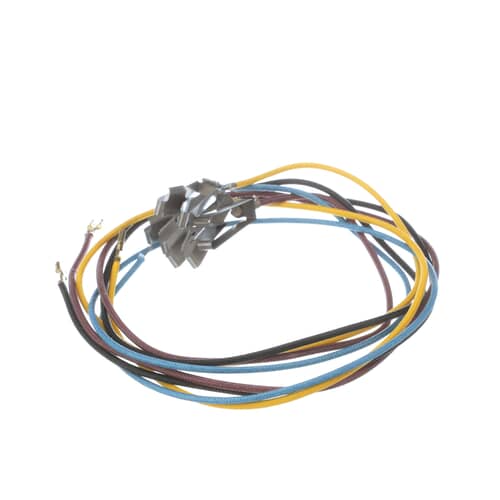

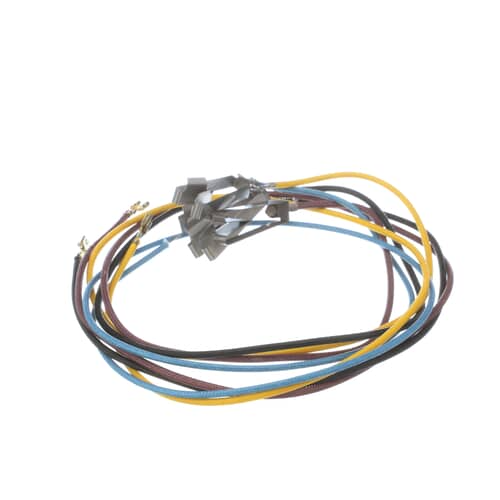

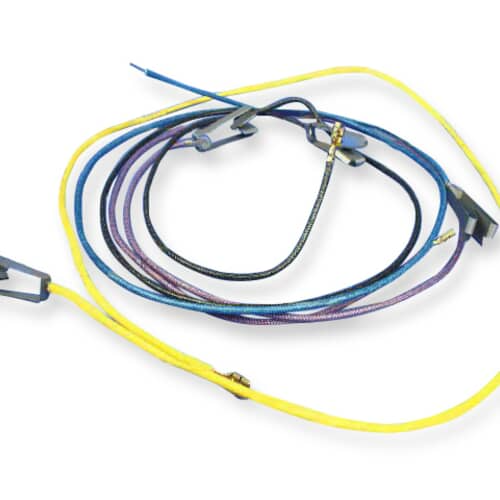

Whirlpool 712022K Appliance Wire Harness Kit – OEM Replacement
The "712022K Wire Harness Kit" is a pre-assembled bundle of wires and connectors used to connect various electrical components within your Whirlpool appliance, typically associated with the main control panel or burner switches. A damaged, shorted, or burnt wire harness can cause electrical failures, intermittent function, or complete non-operation of the appliance. This OEM-style replacement ensures a safe, proper, and color-coded connection between the electrical parts.
Features and Benefits
- Restores Electrical Connection: Replaces worn or damaged wiring to ensure proper power flow.
- Genuine OEM Quality: Made with high-temperature insulation and correct gauge wiring for safety and durability.
- Pre-Assembled and Color-Coded: Designed for a direct plug-in replacement, simplifying the installation process.
- Component Protection: A sound harness prevents electrical issues that could damage costly control boards.
Common Symptoms That Indicate Replacement
- Flickering displays or intermittent function of control panel buttons.
- Visible signs of melting, burning, or corrosion on the existing wire insulation or terminals.
- An electrical short or failure traced specifically to a section of the wiring.
Compatible Models Include
(This harness is specific to certain wiring pathways on compatible Whirlpool, KitchenAid, and Maytag models. Professional verification is highly recommended.)
- RF304PXGS0
- RF304PXGW0
- RCS8200BD1
Cross-Reference / Replaces
712022K (WIRE HARNESS), KIT-WIRE
Compatibility Note
Always disconnect all power to the appliance before accessing internal wiring or attempting replacement. Ensure the terminal connections are secure, as loose wires can lead to arcing and component failure.
