Whirlpool 4396418 Icemaker Kit – Complete Ice-Maker Assembly for Top-Freezer Refrigerators

Description

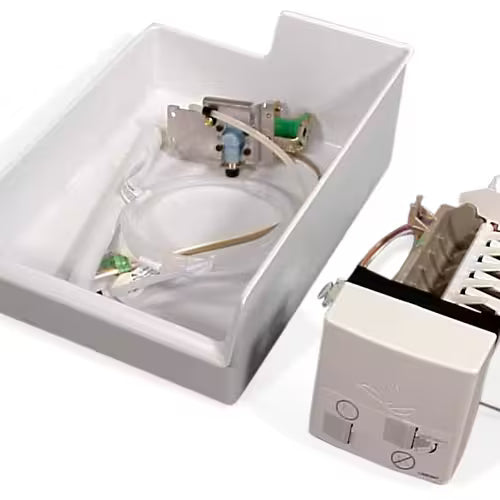

Upgrade your refrigerator’s ice-making capability with this genuine OEM Icemaker Kit (part number 4396418) from Whirlpool. This kit includes the ice-maker module, shut-off arm, water-valve and fill-tube – everything you need to restore automatic ice production. whirlpool.com+2appliancepartscompany.com+2

Important: Before purchasing, please check compatibility with your maintenance technician. It’s vital to confirm your model number and ensure this kit is correct for your appliance’s configuration.

---

Features & Benefits

• Complete ice-maker assembly: includes ice-maker unit, shut-off arm, water inlet valve and fill tube. appliancepartscompany.com+1

• Genuine OEM part: ensures a clean fit and proper performance for supported models. appliancefactoryparts.com

• Designed for top-freezer refrigerators converting or replacing their ice-maker: adds or restores automatic ice production. whirlpool.com+1

• Helps eliminate common ice-maker issues: no ice, slow ice production, or overflowing/underfilling trays.

• Clear installation path: kit is designed for authorized repair or technician installation – reduces downtime and repeat visits.

---

Common Symptoms That Indicate Replacement

• Refrigerator stops making ice altogether.

• Ice production is extremely slow or irregular.

• Ice maker tray overfills or water leaks into freezer compartment.

• Ice cubes are unusually small or hollow.

• Unit shows visible signs of damage (cracked housing, bent shut-off arm) or water valve is leaking/failed.
  If you observe any of these symptoms, consult your maintenance technician — this replacement may solve the issue, but verifying the root cause ensures you don’t replace the part unnecessarily.

---

Compatible (Partial) Model List
This is a partial list of models that this kit can fit; always verify with your model number.

• GB2SHKLLS00 midamericaparts.com

• GB2SHKLLS01 midamericaparts.com

• GB9SHDXPB00 midamericaparts.com

• GB9SHKXLB00 midamericaparts.com

• KBLA20ELSS00 midamericaparts.com

• KBLA22KLSS00 midamericaparts.com

• Many other models under the GB2SH, GB9SH, KBLA/BRA series. midamericaparts.com
  Note: This list is not exhaustive. Always confirm your exact model number and check with a technician.

---

Cross Reference
This part replaces or is equivalent to:

• 1165801A kitchenaidparts.com+1

• 1165807A appliancefactoryparts.com

• 67001740A whirlpool.com+1

• 4344173 whirlpool.com

• AMKIT02 applianceparts.lowes.com
  Using one of these cross-reference numbers is helpful if your appliance manual lists a legacy part number.

---

Compatibility Notes

• This kit is designed for compatible top-freezer refrigerator models equipped to accept an add-on automatic ice-maker. whirlpool.com+1

• Even if the kit physically fits, verify the water line, mounting bracket, and wiring harness match your appliance.

• If your model originally came with an ice-maker, check the wiring and fill-tube routing match what the kit provides.

• Installation should ideally be performed by a qualified technician or by experienced service personnel to ensure proper setup: turn off power, shut off water, follow safety protocols.

• After installation, run the appliance for a full cycle to ensure ice production begins and no leaks occur.
