Description

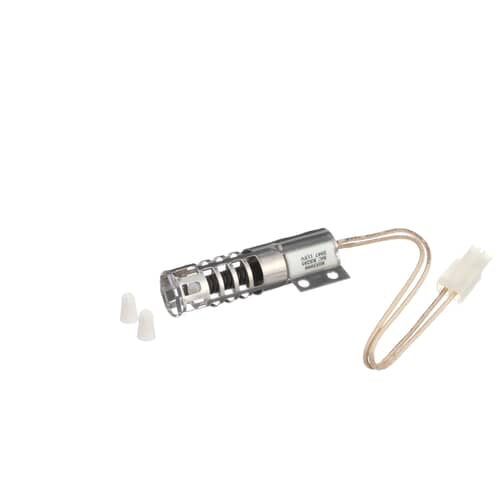

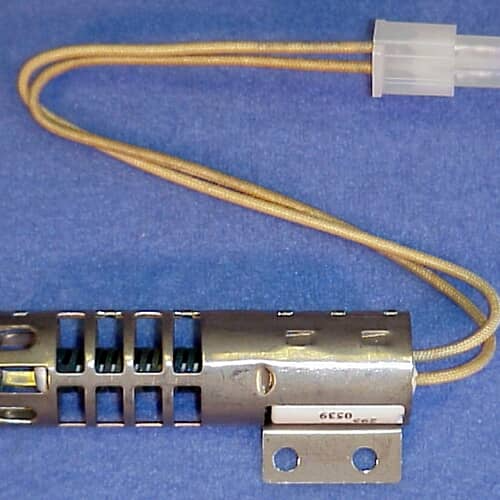

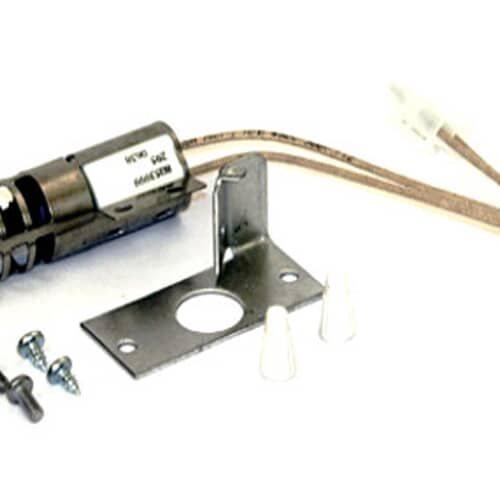

The Whirlpool 4342528 Gas Oven Round Igniter Kit is a genuine OEM part designed for gas ranges. This round-style igniter is made from silicon carbide and is responsible for safely and efficiently igniting the gas for both the oven's bake and broil burners. It operates by drawing electrical current (2.5 - 3.0 amps) through the oven safety valve to open it, then glowing white hot to ignite the gas.
Features & Benefits:
- Genuine OEM part for reliable ignition.
- Round-style silicon carbide igniter with approximately 9-inch leads. **Note:** This part does not replace flat-style igniters.
- Rated for 115V and 2.5 - 3.0A.
- Considered an "Easy fix" part repair that takes less than an hour.
Common Symptoms That Indicate Replacement:
- The oven is not heating up, or provides little to no heat when baking.
- The gas igniter glows orange/white but will not light the gas burner.
- Delayed ignition or a weak flame, which prevents the oven from reaching the desired temperature.
- The broiler is not working.
Compatible Brands Include:
- Whirlpool
- Maytag, KitchenAid, Jenn-Air, Amana, Consul, Brastemp, and Bauknecht
- Kenmore, Roper, GE, Hotpoint, and Estate
Cross-Reference / Replaces:
- AP3104565
- 3422, SP7009205, B00DM8J2JM
- 8053999
- 300259, 3196447, 4157446, 4322910, 4332948, 4389493 (and others)
UPC:
045900697868
