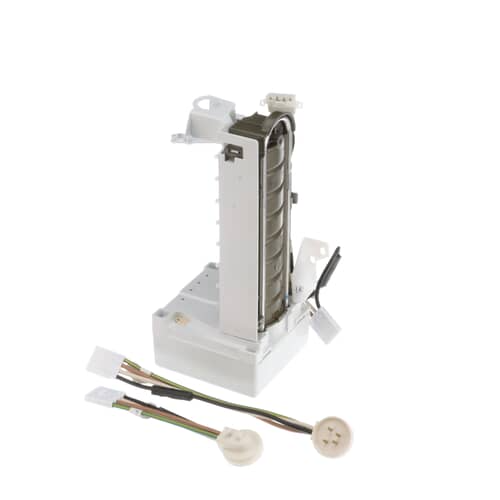

The icemaker assembly viewed from the side, highlighting the tall structure of the mold area and the motor module.

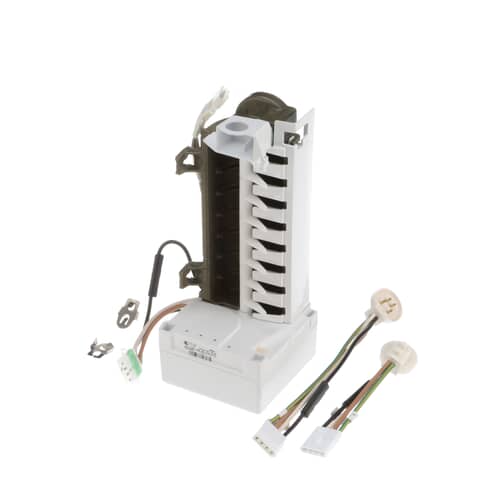

Close-up of the motor end of the icemaker kit, showing the wiring leading to three different connectors and the small bail arm mechanism.

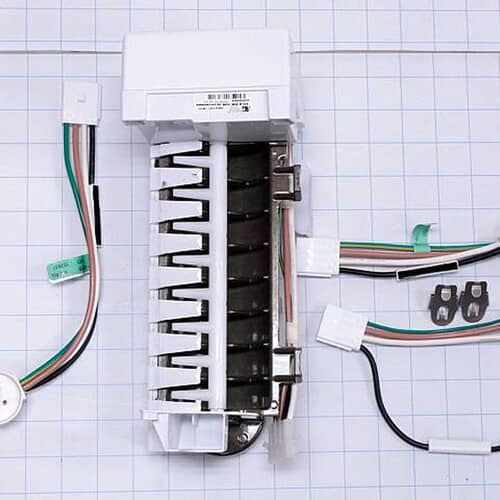

A white icemaker assembly lying on a white grid, showing the mold tray, motor housing, and multiple detached wire harnesses and clips.
Roll over image to zoom in Click on image to zoom
The icemaker assembly viewed from the side, highlighting the tall structure of the mold area and the motor module.Close-up of the motor end of the icemaker kit, showing the wiring leading to three different connectors and the small bail arm mechanism.A white icemaker assembly lying on a white grid, showing the mold tray, motor housing, and multiple detached wire harnesses and clips.

Whirlpool 4317943 Refrigerator Ice Maker Assembly – OEM Replacement

A3 Appliance Supply, Inc.
Price:
$118.04

Login to see wholesale pricing.

Description

Restore dependable ice production with the genuine Whirlpool 4317943 Refrigerator Ice Maker Assembly. This complete OEM kit includes the motor, ice mold, and shut-off bail/sensor, ensuring all necessary components work together to reliably freeze and eject ice cubes into your bin.

Features & Benefits:

  • Complete assembly replaces the entire ice-making unit for comprehensive repair.
  • Features a durable plastic mold tray and metal harvest components for longevity.
  • Includes necessary wiring harness and shut-off sensor mechanism.
  • OEM compatibility ensures proper fitment and synchronized operation with the water valve.

Common Symptoms That Indicate Replacement:

  • Refrigerator produces no ice, or only produces a few small, slushy cubes.
  • The icemaker motor is humming but fails to cycle to eject ice.
  • Ice cubes are stuck in the mold and will not drop into the bin.

Compatible Models Include:

  • 2ET18GMXJW00
  • 2ET18GMXJW01
  • 2ET18NMXJW00
  • 2ET18NMXJW01
  • 3ET18GMXFW00

Cross-Reference / Replaces: 4317943 (Also replaces AP2984633, 1857, PS358591)

Compatibility Note: Before installation, turn off the water supply to the ice maker and unplug the refrigerator. Verify the bail arm sensor orientation matches the previous unit.
