Description

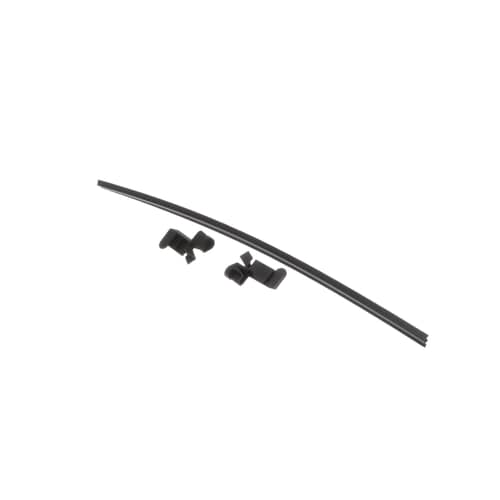

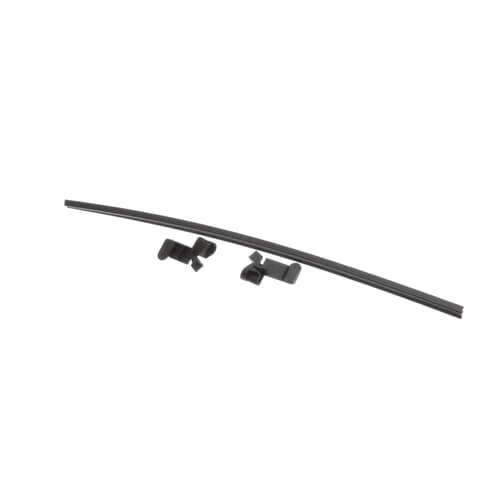

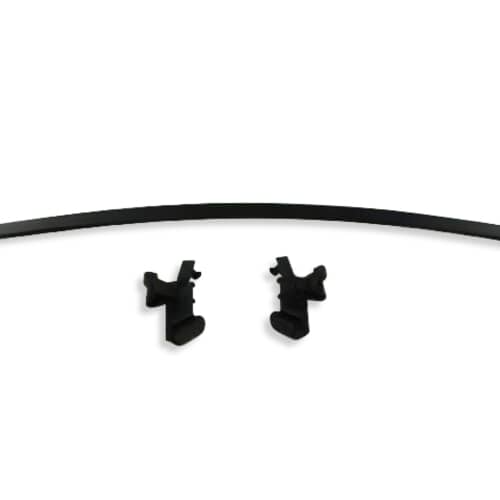

Stop water from leaking onto your floor with the genuine OEM Whirlpool 4172127 Lower Door Seal Kit. This kit, compatible with KitchenAid, Kenmore, and Whirlpool dishwashers, contains the long, black rubber gasket that installs along the bottom edge of the dishwasher tub opening. It creates a watertight barrier against the door, preventing water and steam from escaping during the wash cycle.
Features & Benefits
- Genuine Whirlpool OEM quality ensures a precise, leak-free fit along the bottom of the dishwasher opening.
- Kit includes the rubber seal and necessary mounting clips for proper installation.
- Resolves common issues where water leaks from the bottom of the door, especially when opening it after a cycle.
- Made from durable rubber that resists the effects of heat, water, and detergents.
Common Symptoms That Indicate Replacement
- Water leaking from the bottom edge of the dishwasher door during operation.
- Visible cracks, splits, or deterioration on the rubber seal along the bottom tub opening.
- The original seal has hardened, flattened, or shifted out of its channel.
- The original plastic mounting clips are broken or missing.
Compatible Models Include (Partial List)
- KUDM24SEAL0 (KitchenAid)
- KUDI24SEWH1 (KitchenAid)
- KUDS24SEWH3 (KitchenAid)
- DU7200XR0 (Whirlpool)
- 66515972990 (Kenmore)
Cross-Reference / Replaces
3123, 9742631, 9743488, AP3102987, PS356593
Compatibility Note
Installation Tip: This seal snaps into a channel along the lower edge of the tub opening. For many older models, it is recommended to use a small amount of RTV silicone sealant at the corners to ensure a watertight bond and prevent the seal from slipping. Installation is considered an easy fix.
