Description

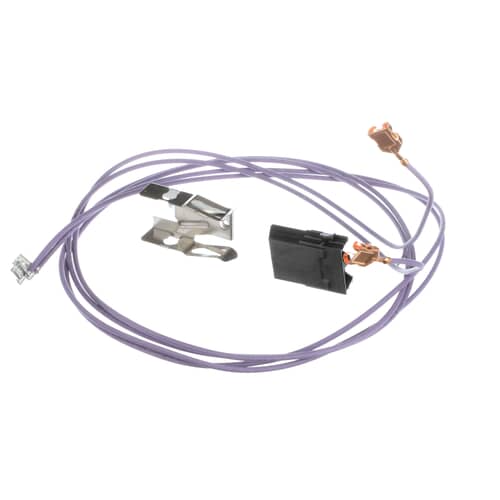

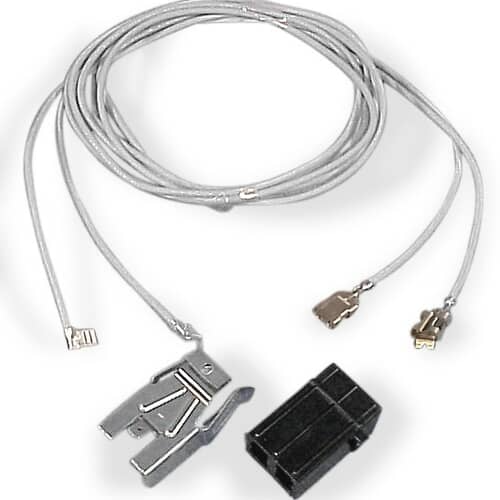

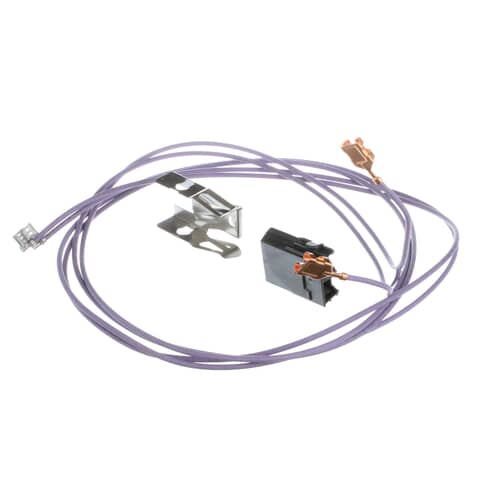

Restore the electrical connection to a faulty cooktop burner with the **GE WB17X210 Surface Burner Terminal Block Kit**. This genuine OEM-style kit contains the main terminal block, a mounting clip, and two pre-crimped wire leads (typically purple or gray) to safely splice into the main wiring harness. The terminal block is the critical point where the plug-in surface element receives power. If your burner is intermittently failing, shorting out, or not receiving any power, replacing this kit will resolve the issue caused by corrosion or arcing at the old terminal block.
Features & Benefits
- Genuine OEM kit replaces the burnt or damaged surface element terminal block.
- Includes terminal block, mounting clip, high-temp wire leads, and connectors for splicing.
- Resolves element failure caused by corrosion, arcing, or short circuits.
- Necessary repair part when the burner is not heating or sparking is visible at the connection point.
Common Symptoms That Indicate Replacement
- Surface element fails to heat up, even when the control switch is on.
- Visible burn marks, melting, or corrosion on the old plastic/ceramic terminal block.
- The burner works intermittently or flickers on and off during use.
- Loud popping sounds or visible sparks when the element is plugged in.
Compatible Models Include (Works with GE, Hotpoint, and related electric ranges)
- GE RA620F1WH
- Hotpoint RB755GN1
- Kenmore 1034327203
- GE JMP28GV1AD
- Roper (various electric range models)
Cross-Reference / Replaces: WB17X210, 2266, 293798, 318960, 326800, AP2021472, WB17X10018
Compatibility Note: Before attempting to replace this kit, always disconnect power to the range at the circuit breaker. This is a splice-in kit and requires careful connection of the new wires to the existing harness.
