Description

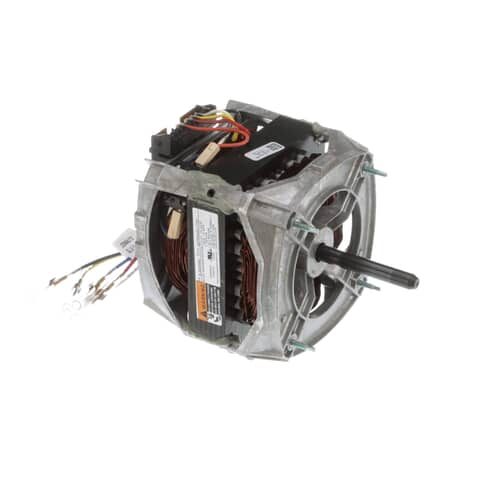

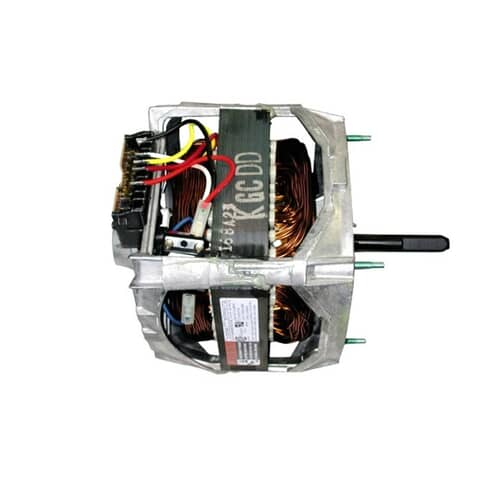

Restore essential mechanical action to your washer with the Whirlpool 12002351 1 Speed Drive Motor and Jumper Kit. This genuine OEM motor is designed to power the agitation and spin functions of your top-load washer, including the drive for the drain pump. It is a single-speed, 120 Volt unit that comes with a necessary jumper wire harness for connection to the main control system. If your washer fails to spin, agitate, or makes excessive noise, this motor replacement is often required.
Features & Benefits:
- Drive Power: Converts electrical energy to mechanical force, driving both the transmission and the drain pump.
- Single Speed: Designed for washers requiring a fixed motor speed for agitation and spin.

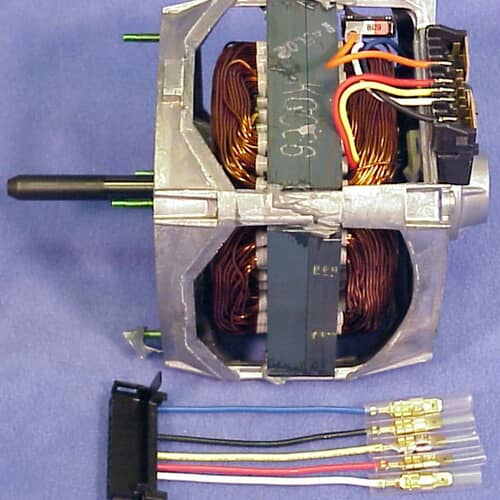

- Includes Jumper: Comes with a harness adapter plug to simplify electrical connections during installation.
- OEM Quality: A genuine part ensuring compatibility and durability for extended washer life.
Common Symptoms That Indicate Replacement:
- Washer pumps water but fails to agitate or spin the drum.
- Loud squealing, grinding, or a burning rubber smell during cycles.
- The washer shows no motor activity at all when trying to start a cycle.
Compatible Models Include:
- MAH5500BWW (Maytag)
- 7MLGR4634JQ3
- LSQ9549PG0
- CAH4205AWW (Crosley)
Cross-Reference / Replaces:
12002351, 12001435, 22002313, 785411, PS2003768
Compatibility Note:
Since this is a single-speed motor, any extra wires on the included jumper harness may not be used; verify connections to the old motor before disconnection. Always disconnect the washer from power before working on internal electrical components.
