Description
Product Description

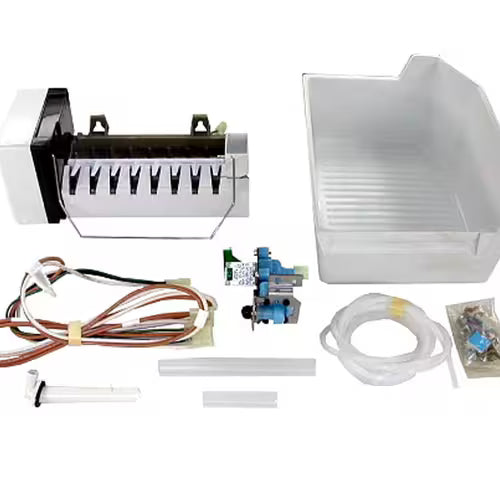

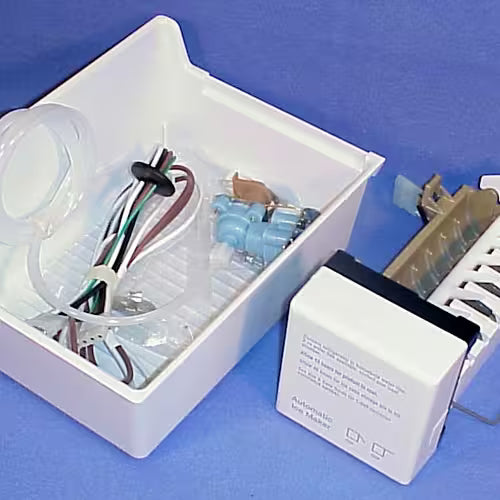

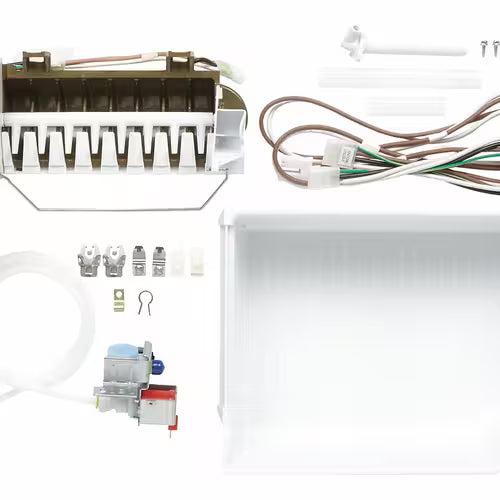

Upgrade or restore the ice-making capability of your refrigerator with this genuine OEM replacement kit, model 1129316. Designed for select plastic-liner refrigerators (typically 28″ or 31″ width) from 1984-1993, this kit includes everything needed to convert or replace your existing ice maker assembly: the ice maker unit, wiring harness, water fill tube, water valve, ice bin, mounting hardware and instructions. whirlpoolparts.com+2speedyapplianceparts.com+2
Because ice maker operation is impacted by both component fit and freezer wiring/water valve condition, please confirm fitment with your maintenance technician prior to ordering.
This kit delivers reliable ice production, simplifies installation, and restores function to aging units.
Features & Benefits
-
Complete kit including ice maker assembly, bin, water valve, harness and hardware — one box install. speedyapplianceparts.com+1
-
OEM part from Whirlpool designed for compatibility with multiple legacy refrigerator models (Whirlpool, KitchenAid, Roper, Amana, Inglis, Estate, Kenmore etc.). speedyapplianceparts.com+1
-
Designed for plastic-liner refrigerators from the mid-’80s to early ’90s — wide fit coverage for older units. whirlpoolparts.com+1
-
Restores proper ice production and bin fill — replacement of a failing ice maker can help avoid service interruptions.
-
Simplified installation with included components — reduces the time and complexity of pickup parts from various sources.
Common Symptoms That Indicate Replacement Is Needed
-
Ice maker stops producing ice though water supply is confirmed.
-
Ice bin remains empty or only produces a partial load.
-
Ice maker makes loud or unusual noises (grinding, clicking) during harvest or fails to harvest.
-
Water leaks or overflow in ice bin area or freezer compartment.
-
Freezer temperature stable but no ice production, indicating the ice maker module may be failed.
-
Age of refrigerator is in the 1984-1993 range and original ice maker still in service — candidate for proactive replacement.
If you’re seeing any of these issues, a kit like this may be the right solution — however verify model and fit with a technician before ordering.
Compatible Models (Partial List)
Below are some of the brands and model-types this kit is known to fit (for full model verification, see your appliance’s model number plate and confirm wiring and plug style):
-
Whirlpool / KitchenAid / Roper refrigerators with plastic liners (28" & 31" widths) produced around 1984-1993. whirlpoolparts.com+1
-
Kenmore, Amana, Estate, Inglis brand refrigerators of similar era and liner style. speedyapplianceparts.com
Note: Because this kit is designed for older plastic-liner units, it may not fit newer or metal-liner refrigerators without modification.
Cross Reference
This kit directly replaces or is compatible with the following part numbers:
1129316, WPW10190943, AP3062348, PS317560, 1129316VP, 1129302, 1129303, 1129306, 1114209, 1118766, 2155184, 2155185, 2155186, 2155187, 2155188, 2155304, 944804, 8090, 8239, 8440, 8550. speedyapplianceparts.com+1
Compatibility Notes
-
This kit is intended for plastic-liner refrigerators with 28″ or 31″ width cabinets produced roughly between 1984-1993. whirlpoolparts.com+1
-
Verify that your appliance uses a flat-style plug water valve (not round) because this kit includes the flat-plug version. speedyapplianceparts.com
-
Water supply must be functional and the freezer temperature correct (0°F to 5°F) for proper ice maker operation — replacing only the ice maker may not resolve issues if upstream water supply or freezer temp is wrong.
-
Because the installation involves wiring and water valve Fittings, and given the age of the appliance, check with your maintenance technician prior to ordering to ensure compatibility and safe installation.
-
Installation may require removing bin liners or adjusting door gasket clearance—review instructions and ensure your technician has access to necessary tools.
