Description

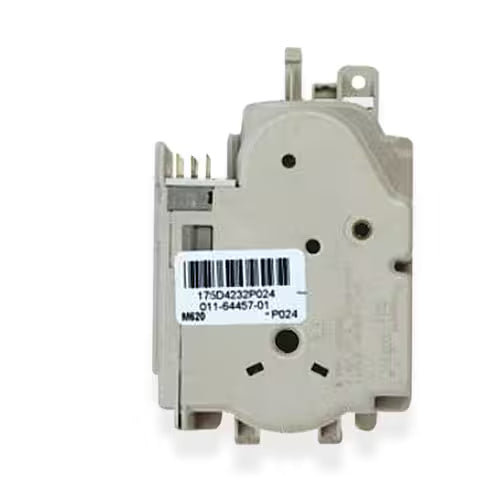

Restore proper cycle timing and control in your GE washer with the 100% genuine OEM Part WH12X10254 Timer Assembly. This unit regulates the various phases of the wash cycle—fill, wash, rinse, spin—and is designed for many GE/Hotpoint/RCA models.
⚠️ Please check with your maintenance technician prior to ordering to confirm compatibility with your exact washer model, timer mounting style and wiring harness. GE Appliances+2Grainger+2
Features & Benefits
Features:
-
OEM part number WH12X10254. GE Appliances+1
-
Timer assembly designed for GE washers (24-pin terminal block, round knob shaft) eBay+1
-
Direct fit replacement built to factory specifications.
Benefits:
-
Restores proper cycle function — ensures your washer advances correctly through all phases (fill → wash → drain → spin).
-
Improves reliability & performance — solves issues like stuck cycles, non-advancing timer, or inconsistent behavior.
-
OEM quality fit — reduces risk of mis-fit or early failure compared to generic units.
-
Cost-effective repair — replacing the timer assembly can bring a machine back to life without major overhauls.
Common Symptoms That Indicate Replacement Needed
-
Washer stops or stalls mid-cycle or won’t advance past a phase.
-
Timer knob doesn’t turn, skips positions or doesn’t engage.
-
Cycle time is unusually long or erratic.
-
Visible burn marks, melting or damage at the timer block.
-
Controls appear correct but the machine doesn’t respond appropriately.
Compatibility Notes
-
Fits many GE washers that list part WH12X10254 or cross-references. Example models list: S3600D0WW, S3700E1WW, WBSR3140D3WW, WHDSR315D0WW. ShopJimmy
-
Always verify your machine’s model number and serial number and check that this timer is listed in the parts breakdown for your model.
-
Inspect mounting style, wiring, and connector layout to ensure proper fit—timers can vary by model year even within the same brand.
-
If other control components (e.g., timer knob, selector switch, wiring harness) are damaged, replacing the timer alone may not fully resolve the issue.
