Description
Description

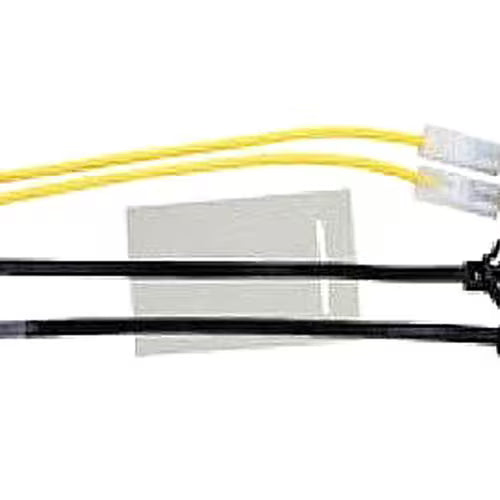

Prevent your dishwasher from overheating or short-circuiting with this genuine OEM Part 8193762 Thermal Fuse Kit. The kit includes the thermal cut-off fuse, wiring harness, and installation instructions—designed to shut off power if the dishwasher overheats or experiences an electrical fault. whirlpoolparts.com+2Lowes Appliance Parts+2
⚠️ Please check with your maintenance technician prior to ordering to confirm compatibility with your exact dishwasher model number and that your control system requires this fuse kit.
Features & Benefits
Features:
-
OEM part number 8193762. kitchenaidparts.com+1
-
Includes thermal fuse, harness and instructions. appliancepartscompany.com+1
-
Compatible with many Whirlpool, KitchenAid, Maytag, Jenn-Air and related dishwashers. Lowes Appliance Parts+1
Benefits:
-
Protects your appliance — Safely cuts power in case of overheating or fault, avoiding further damage.
-
OEM reliability — Using the original manufacturer kit ensures correct fit, function and safety compliance.
-
Cost-effective repair — A valuable fix for thermal/fuse related failures without replacing major components.
-
Installation simplified — Comes with wiring harness and instructions for easier replacement when following safety steps.
Common Symptoms That Indicate Replacement Needed
-
The dishwasher displays a “thermal fault” or “heating fault” error code.
-
The appliance stops mid-cycle, or fails to power on, and a fuse test shows an open circuit.
-
The thermal fuse or wire harness is visibly burnt, discolored, melted, or the original unit is missing.
-
After replacing other components (control board, heater) the issue persists and the fuse is listed in service sheet.
-
The parts diagram for your machine lists part 8193762. letstalkparts.com+1
Compatibility Notes
-
This fuse kit fits many dishwashers from Whirlpool and affiliated brands — check that 8193762 appears on your parts breakdown or service sheet. whirlpoolparts.com
-
Always verify your appliance’s model number and serial number, and compare the wiring harness and fuse mounting style.
-
If you replaced the control board or heating element, and still experience thermal fault, the fuse kit is a key component to check.
-
Installation involves working with electrical wiring — if you’re not comfortable, consider having a maintenance technician complete the replacement.
