Description
Description

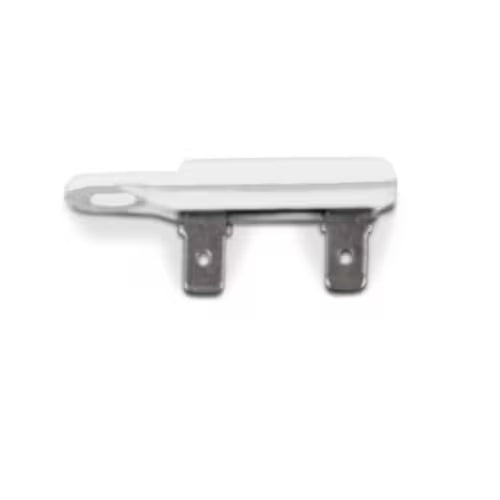

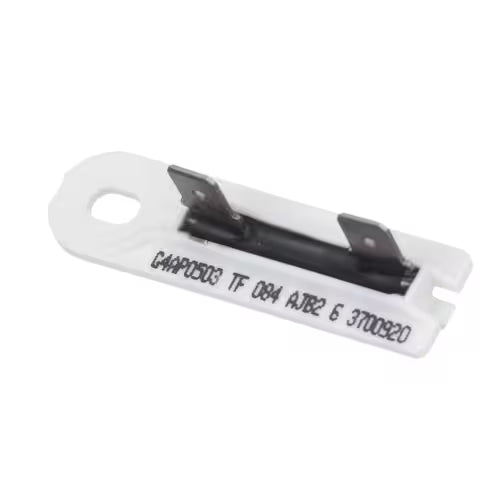

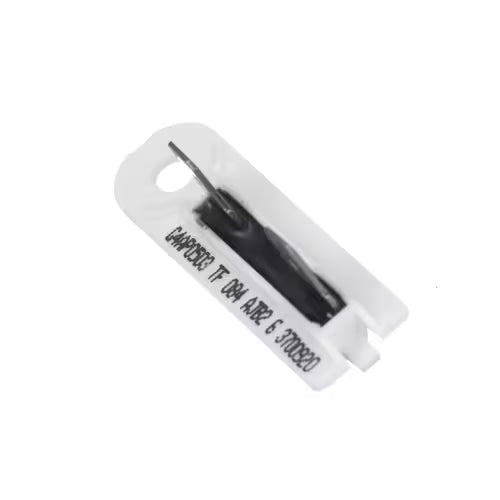

Ensure safe operation of your dryer with the genuine OEM high-limit thermal fuse WP33001762. This fuse is a one-time safety cut-off device used in select dryers built by or for brands like Whirlpool, Maytag and Kenmore. When the dryer overheats (due to blocked vent, failed thermostat, or other fault), this fuse opens the heating circuit to prevent further damage or fire risk. appliancerepair.homedepot.com+2Amazon+2
⚠️ Please check with your maintenance technician prior to ordering to confirm compatibility with your exact dryer model number, and verify the fuse’s mounting, rating and application match your machine.
Features & Benefits
Features:
-
OEM part number: WP33001762. appliancerepair.homedepot.com+1
-
Designed specifically as a high-temperature cut-out (thermal fuse) for select Whirlpool/Maytag/Kenmore dryers. hdsupplysolutions.com+1
-
Replaces older equivalents such as 33001762, AP6007940, PS11741067. Amazon+1
Benefits:
-
Protects your appliance and home — By cutting off the heating circuit when unsafe temperatures are reached, it helps prevent overheating hazards.
-
Restores proper operation — If your dryer is not heating or the heating circuit is open due to a blown fuse, replacing this part can restore functionality (assuming the underlying cause is addressed).
-
OEM specification ensures correct performance — Using a body-correct part reduces the risk of mis-rated substitutes causing further damage.
-
Simple and cost-effective safety repair — Rather than replacing major assemblies, swapping a fuse can often resolve a no-heat or safety shutdown condition.
Common Symptoms That Indicate Replacement Needed
-
The dryer tumbles but does not produce heat, or cuts off heating mid cycle.
-
You suspect overheating due to blocked vents, long dry times, or lint build-up behind the dryer.
-
The fuse has been triggered (open circuit) when checked with a multimeter.
-
The service manual or parts list for your dryer shows part WP33001762 (or its cross-references) for the thermal fuse. maytagreplacementparts.com+1
Compatibility Notes
-
Fits many dryers from the Whirlpool family, as well as Maytag and Kenmore models built by/for Whirlpool that list the part number WP33001762. parts.alliancelaundry.com+1
-
Before purchasing:
-
Verify your dryer’s model number & serial number (typically found on the door frame or rear panel).
-
Compare the fuse you’re replacing: check physical mounting, connector type, and ensure the rating is identical.
-
Note: If the fuse blew due to vent blockage or overheating, simply replacing the fuse may not fix the root cause — check your dryer’s venting and lint path.
-
