Description

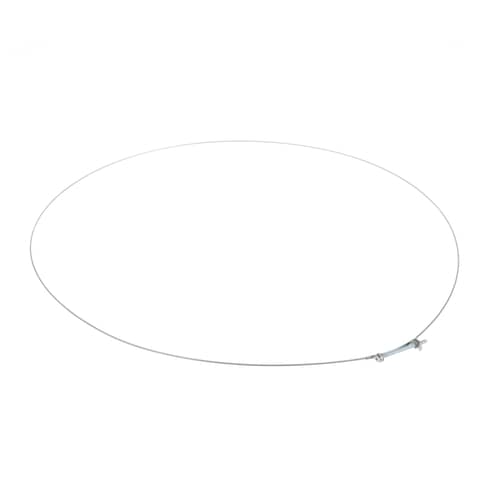

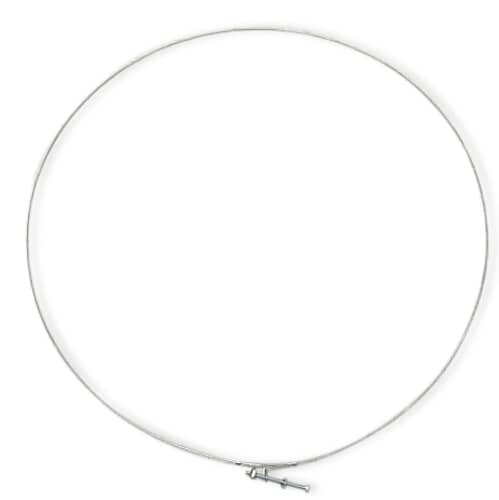

Secure critical hoses and seals with the genuine Samsung DC97-04981D Assembly Clamp Diaphragm (Wire Ring). This large, adjustable metal clamp is often used to affix the outer door boot seal (gasket) or large hoses like the tub-to-pump connection, ensuring a tight, leak-proof seal.
Features & Benefits:

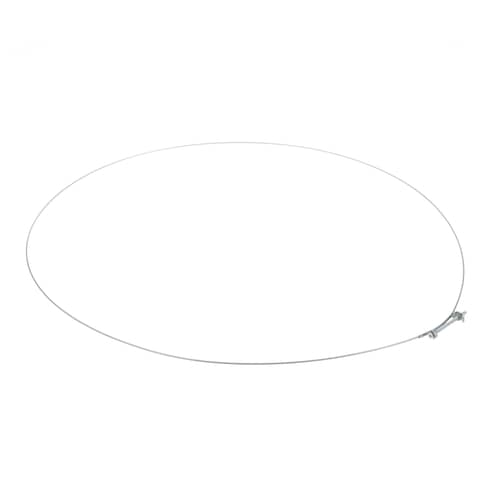

- Genuine Samsung OEM wire ring clamp with an adjustment mechanism
- Durable metal construction provides strong, consistent tension around the hose or seal
- Essential for securing large diameter connections prone to leaking or coming loose
- Allows for easy tightening or loosening during service
Common Symptoms That Indicate Replacement:
- Water leaking from a large hose connection point (e.g., door boot or drain hose)
- Existing clamp is rusted, broken, or will not tighten sufficiently
Compatible Models Include:
- WF328AAR/XAA
- WF218ANB/XAA
- WF206BNW/XAA
- WF365BTBGWR/A2
- WF330ANB/XAA
- WF209ANW/XAA
Cross-Reference / Replaces:
DC97-04981D, 6585241
Compatibility Note:
When securing a door boot seal, ensure the clamp wire sits correctly in the retaining groove on the outer tub or door frame for maximum sealing effectiveness.
