Description

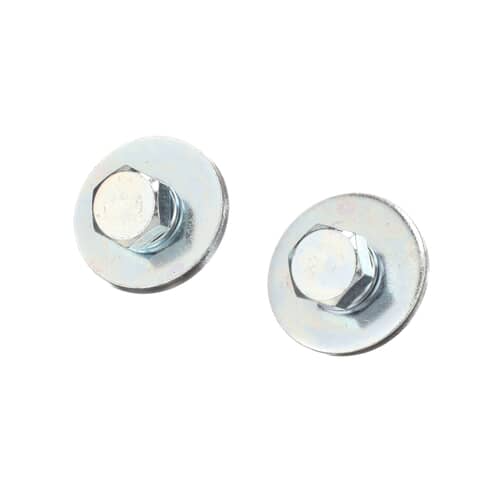

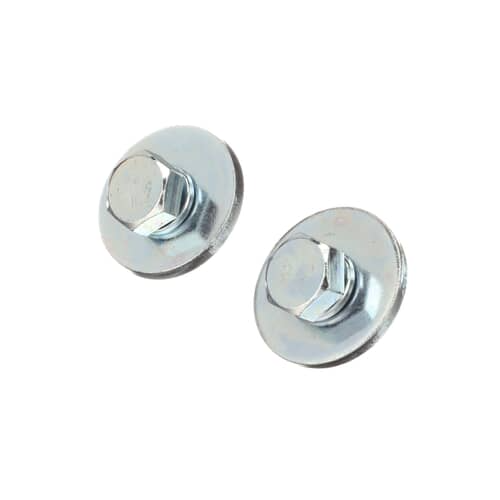

Secure the core of your washer's drive system with the genuine OEM LG 4040FR4051C Motor Rotor Bolt Assembly. This crucial fastener is designed for LG and Kenmore front-load washing machines utilizing Direct Drive technology. It secures the rotor (the magnetic component) directly to the motor shaft, ensuring the inner drum spins efficiently and correctly during all wash and spin cycles.
Features & Benefits
- Genuine LG OEM part guarantees an exact fit and the required tensile strength for the Direct Drive motor.

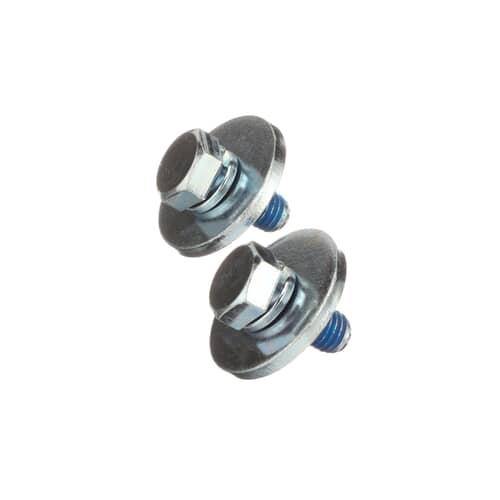

- Often comes pre-coated with thread locker (Loctite-style coating) to prevent loosening from vibration.
- Critical for maintaining the stability and correct alignment of the motor rotor.
- Compatible with numerous LG and Kenmore Direct Drive washer models.
Common Symptoms That Indicate Replacement
- Washer drum is not spinning or is spinning erratically, even though the motor may sound like it is running.
- Loud banging, clunking, or rattling noises coming from the motor area (often indicating a loose rotor).
- Threads on the original bolt are damaged or stripped from removal or previous installation.
- The original bolt was damaged during the replacement of the rotor or stator assembly.
Compatible Models Include (Partial List)
- WM2077CW
- WM2496HWM
- F1201FD
- 79640021900 (Kenmore)
- WM3875HVCA
Cross-Reference / Replaces
4040FR4051B, 1267494, AP4436414, AH3522868, PS3522868
Compatibility Note
Installation Tip: This is an M10 bolt that typically requires a 17mm socket wrench for installation. It is strongly recommended to use a small amount of thread-locking fluid on the bolt, even if the OEM part is pre-coated, to ensure the bolt remains tight against the high vibrations of the spin cycle. Always unplug the washer before disassembly.
