Product Description

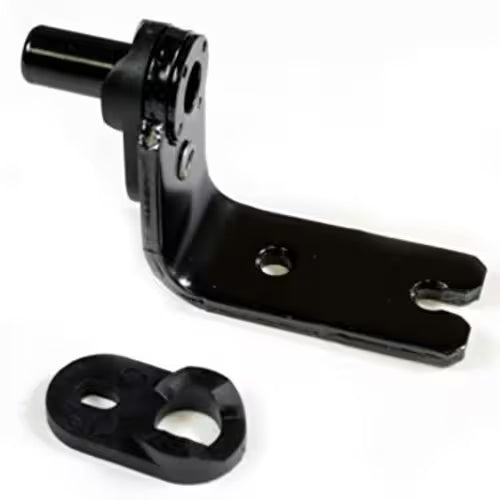

Restore correct door alignment and smooth opening/closing of your refrigerator with the genuine OEM bottom hinge kit, part number WR13X10020. This hinge kit (bottom pin and cam assembly) is designed for many GE, Hotpoint, and affiliated models. GE Appliance Parts+2mccombssupply.com+2
Because door hardware, mounting holes, and hinge cams can vary across model years, liner types and door styles, please check with your maintenance technician prior to ordering to confirm that this part matches your appliance’s hinge design and model specification.
Features & Benefits
-
OEM specification: Designed and manufactured to match GE’s original hinge kit specification for part WR13X10020. GE Appliance Parts+1
-
Includes bottom hinge pin & cam assembly: This kit addresses misalignment, sagging doors, and improper door closure by replacing worn pivot components. mccombssupply.com
-
Improves door function & seal: Proper hinge alignment helps the door close tightly, maintain the gasket seal, and reduce forced-run time of compressor due to warm air entry.
-
Cost-effective repair: Instead of replacing an entire door assembly or liner, this focused hardware kit restores alignment and operation at a lower cost.
-
Versatile fit across brands: Compatible with GE, Hotpoint, Kenmore and other affiliated refrigeration models using this hinge style. hdsupplysolutions.com
Common Symptoms That Indicate Replacement Is Needed
-
Refrigerator door appears mis-aligned, sagging or drifting open slightly.
-
The door does not close smoothly, or the gasket doesn’t seal completely when shut.
-
Excessive clearance at the bottom of the door when closed, or door sticks when rolling open.
-
Visible damage or wear to the existing hinge pin, cam riser, or mounting bracket.
-
Uneven gaps around the door, or the door swings open/closes with abnormal noise or resistance.
Compatible Models (Partial List)
This hinge kit fits many GE/Hotpoint refrigerators that list part WR13X10020 (or its cross-reference numbers) in their parts breakdown. Example compatible major models include those with bottom hinge pin & cam assemblies for the fresh-food door. Specific compatibility varies by production year and door configuration. applianceparts.lowes.com
(Note: This is a partial list—always verify your appliance’s full model number and hinge configuration before ordering.)
Cross Reference
This part WR13X10020 is also compatible with or replaces the following part numbers:
-
AP2063068 mccombssupply.com+1
-
PS290199 mccombssupply.com+1
-
WR13X5125 eBay+1
-
WR49X5099 (shown in some door hinge kit listing) cafeappliances.com+1
Compatibility Notes
-
Confirm the door hinge mounting holes, cam style, door width and liner trim match your current installation—sub-differences can affect fit even with the correct part number.
-
Ensure the door is properly supported during installation; a sagging or mis-mounted door may cause damage to the gasket, liner or hinge bracket over time.
-
While this part addresses hinge and pivot wear, if your door still does not seal properly or you observe temperatures issues, the gasket, liner or door frame may also need inspection.
-
Installation may require door removal, leveling and adjustment of hinge clearances—consult with your maintenance technician if uncertain.
-
As with all door hardware, ensure power is off and if your refrigerator has an ice/water dispenser or wiring through the door, verify wiring paths before removing the door.
