Description

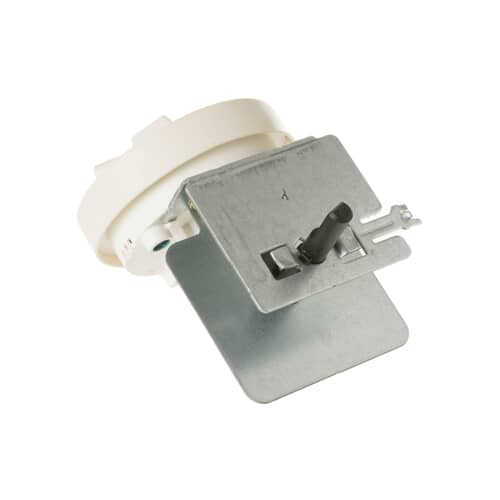

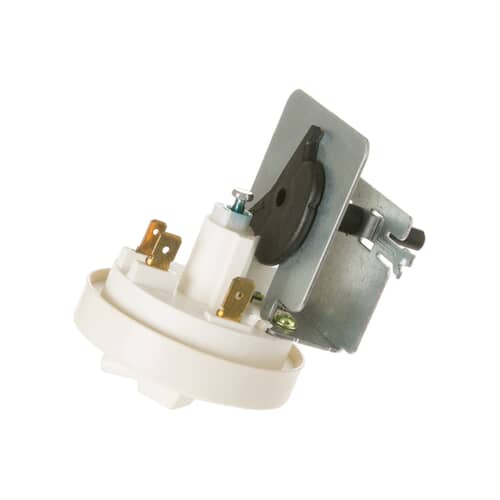

Ensure your GE top-load washer fills to the correct level with the genuine WH12X10076 Pressure Switch. This OEM component senses the water level in the tub by monitoring air pressure changes transmitted through a small hose, signaling the control board when to stop filling.
Features & Benefits:
- Genuine GE OEM switch guarantees correct pressure calibration and electrical action

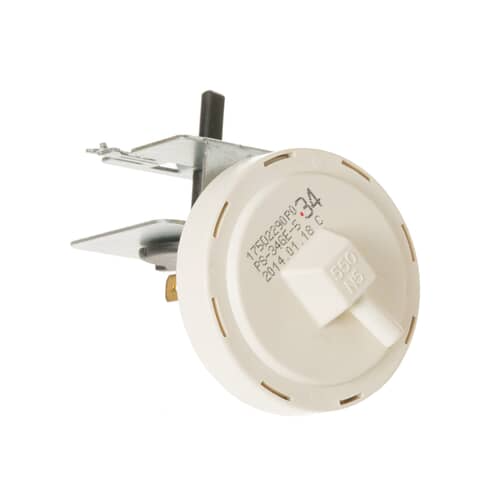

- Features multiple electrical terminals for connection to the main control or timer
- Includes a metal mounting bracket for secure installation within the appliance frame
- Direct replacement for switches causing overfilling or underfilling issues
Common Symptoms That Indicate Replacement:
- Washer fills constantly, ignoring the selected water level setting
- Washer fails to fill at all (if the switch is stuck open)
- Inaccurate water level readings during diagnostic tests
Compatible Models Include:
- GJSRP080B1WW
- GJXRP080B1WW
- LISR310CW1WW
- S3200Y1WW
- S3200Y2WW
Cross-Reference / Replaces:
WH12X10076, 6885750
Compatibility Note:
Before replacing the switch, check the attached pressure hose for kinks, cracks, or clogs, as a faulty hose can cause the same symptoms as a failed switch.
