Description

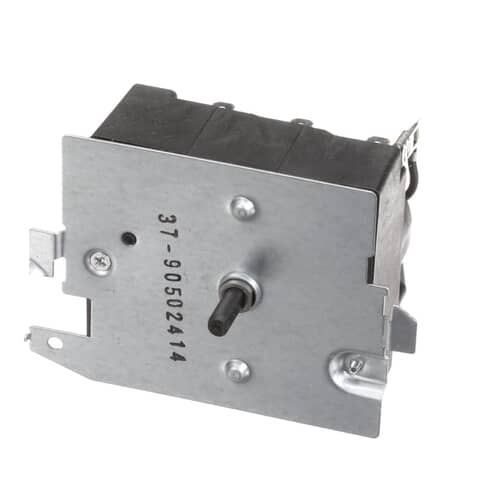

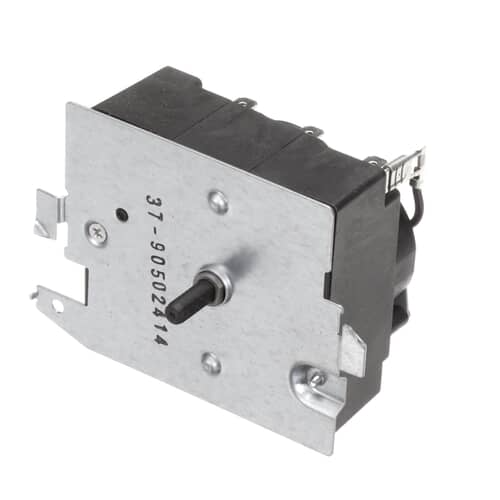

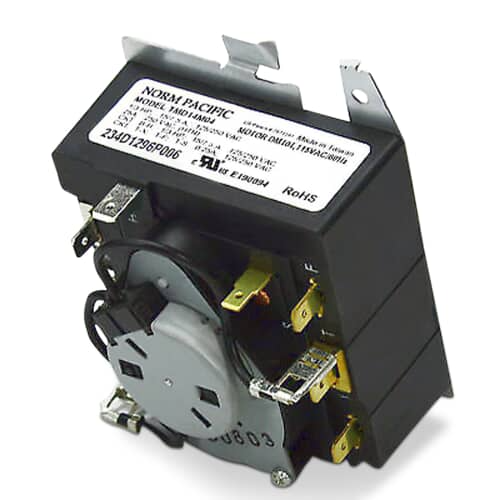

Restore accurate cycle timing to your GE dryer with the WE04X20416 Timer. This OEM-style replacement controls the duration of all drying and cooling phases, ensuring your clothes are dried to the correct setting.
Features & Benefits:
- Accurately manages the duration and sequence of all dryer operating cycles.
- Features multiple electrical terminals for connections to the motor, heating element, and controls.
- Durable construction built to handle continuous electrical cycling.
- Essential for resolving issues where the dryer runs too long or stops unexpectedly.
Common Symptoms That Indicate Replacement:
- The timer mechanism fails to advance or hangs up on a specific cycle segment.
- The control knob feels loose or does not engage the internal switching mechanism.
- Dryer runs, but heat cycles do not turn on or off correctly.
Compatible Models Include:
- GTDX400ED3WS
- GTDX400GD3WS
- GTDX400ED4WS
- GTDX400GD4WS
- GTDX400ED5WS
Cross-Reference / Replaces: WE04X20416
Compatibility Note: As a timer controls all cycle operations, always unplug the dryer and refer to the specific wiring diagram before attempting replacement.
