Description

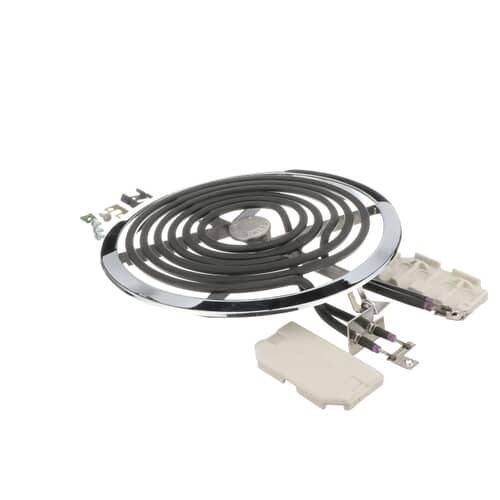

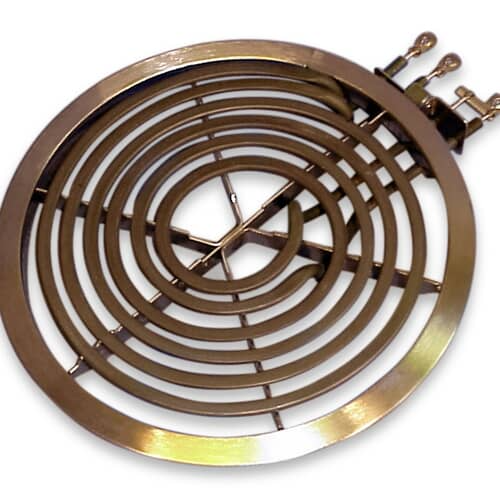

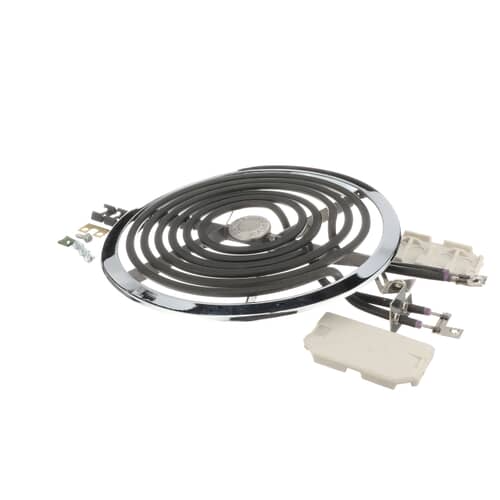

Restore high-power heating to your larger burner openings with the GE WB30X354 8-Inch Coil Surface Element Kit. This genuine OEM assembly is designed for the 8-inch burner slot on electric ranges, rated at approximately 2450 Watts at 240 Volts. This element features a high-coil density and a built-in chrome trim ring, supplying maximum, consistent heat for large pots and pans. It includes the necessary three-wire terminals and tilt-lock hinge for easy replacement.
Features & Benefits:
- Large Burner Size: 8-inch diameter coil is ideal for large cookware and faster heating.
- High Wattage: Rated at approximately 2450W for rapid boiling and high-heat searing.
- Complete Assembly: Includes the coil, trim ring, and terminal connections/hardware for a comprehensive repair.
- Plug-In Design: Features a tilt-lock hinge for easy installation and raising for cleaning underneath.
Common Symptoms That Indicate Replacement:
- The coil element fails to heat up, or only turns a dull red color.
- Element has visible breaks, cracks, or blistering on the coil surface.
- The terminals at the rear of the element are scorched or damaged.
Compatible Models Include:
- J4081N1
- J4081N2
- JB400GXH1
- JBP24G*02
- JB600G3D4
Cross-Reference / Replaces:
WB30X354, AP2634798, WB30X307, WB30X147, WB30X316, 2520
Compatibility Note:
This is a standard coil element, not a Sensi-Temp model. Ensure your cooktop uses a non-Sensi-Temp coil and confirm your element requires a 3-wire connection. **Always disconnect the range power** at the breaker before proceeding.
