Description

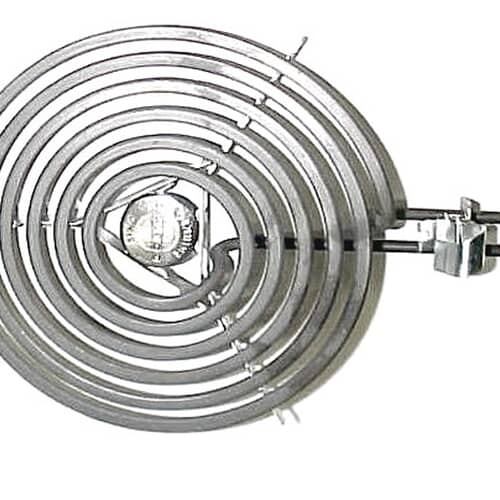

Replace your worn-out or damaged large stove coil with the GE WB30X348 8 Inch Hi-Rise Coil Surface Element Kit. This genuine OEM-style element is a high-wattage coil, typically rated at 2350 Watts (at 240V), designed for fast, high-heat cooking on your electric range. This is the Hi-Rise (HR) hinged element style, meaning it screws into the terminal block receptacle and can be lifted up for cleaning underneath the cooktop. This kit often includes the element itself and hardware for the terminal connection.
Features & Benefits
- Genuine OEM coil element, 8-inch diameter, typically rated for 2350 Watts.
- Hi-Rise (HR) hinged design allows the element to lift up for easier cleaning of the drip bowl.
- Provides fast and consistent heat for large pots and pans.
- Kit includes the element, terminal block, and necessary hardware for replacement.
Common Symptoms That Indicate Replacement
- Element does not heat up or only heats intermittently.
- Element is visibly broken, cracked, or has severe corrosion/pitting.
- Element shorts out or trips the breaker when turned on.
- Coil is permanently warped, causing cookware to sit unevenly.
Compatible Models Include (Works with GE, Hotpoint, and related electric ranges)
- Hotpoint 207RF755
- Kenmore 22103
- GE J309\*01
- GE (various older electric ranges using the screw-in, hi-rise element)
Cross-Reference / Replaces: WB30X348, 2573, AP2027829, WB30X348R, SU200, ERS348
Compatibility Note: This is an 8-inch, two-wire, screw-in type coil element. Always disconnect power to the range at the circuit breaker before attempting to remove or install this part.
