Description

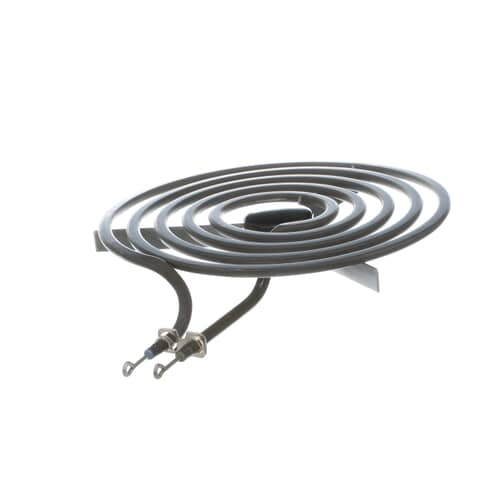

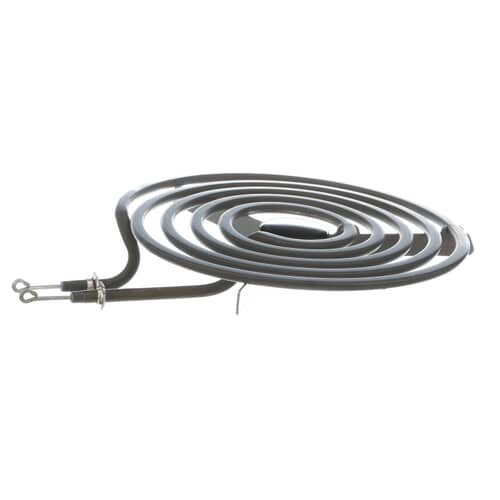

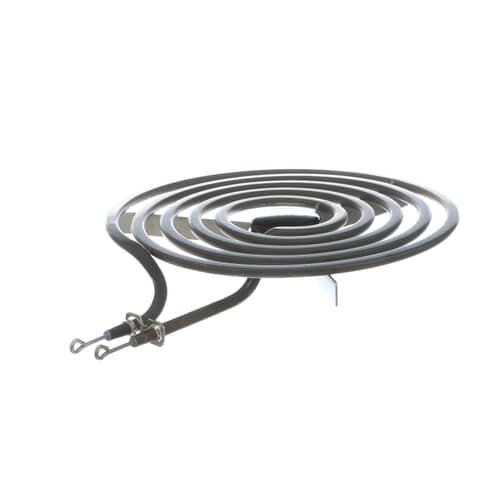

Restore quick and powerful heating to your larger burner openings with the GE WB30K5035 8-Inch Coil Surface Element. This genuine OEM element is rated for 2400 Watts and provides reliable, high-output heat for large cookware on your electric range cooktop. The coil unit features a standard five-turn design and plugs directly into the range top receptacle, ensuring energy efficiency and even heat transfer for consistent cooking results.
Features & Benefits:
- Large Burner Size: 8-inch diameter coil is ideal for larger pots, pans, and faster boiling.
- High Wattage: Rated at 2400W (240V) for strong and consistent heat output.
- Y-Frame Support: Features a sturdy support bracket for stability within the drip bowl.
- Plug-In Design: Easily plugs into the surface element receptacle for quick, tool-free replacement.
Common Symptoms That Indicate Replacement:
- The coil element fails to heat up, or only turns a dull red color.
- Element has visible breaks, cracks, or blistering on the coil surface.
- The burner heats unevenly or takes too long to reach full temperature.
Compatible Models Include:
- JDP36BW4AD
- JDS26BW1WH
- JDP39WW4WW
- JDS26BW3AD
- JDP36GV1WH
Cross-Reference / Replaces:
WB30K5035, AP2027768, 257595, PS243859
Compatibility Note:
This is a conventional coil element (not Sensi-Temp). Always verify the 8-inch diameter and the wattage rating match your existing element. Disconnect the range power at the breaker before unplugging the old element.
