Description

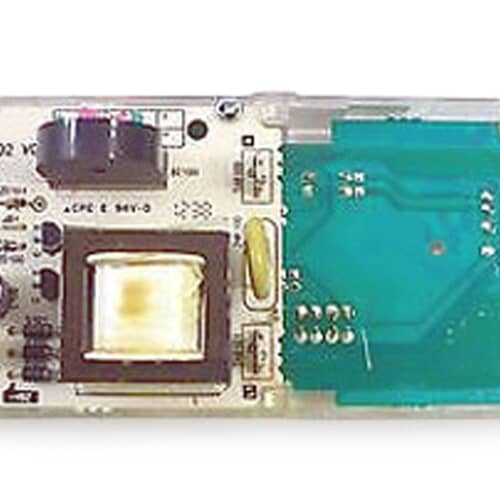

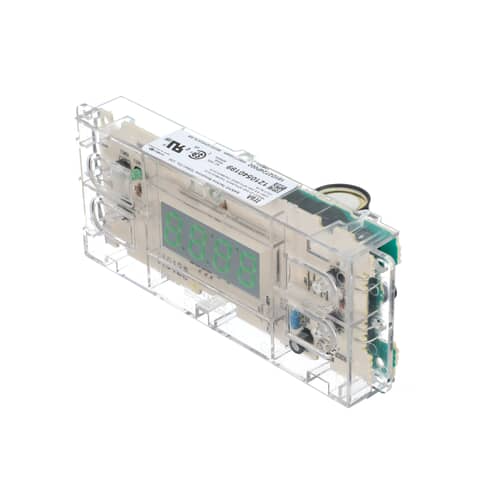

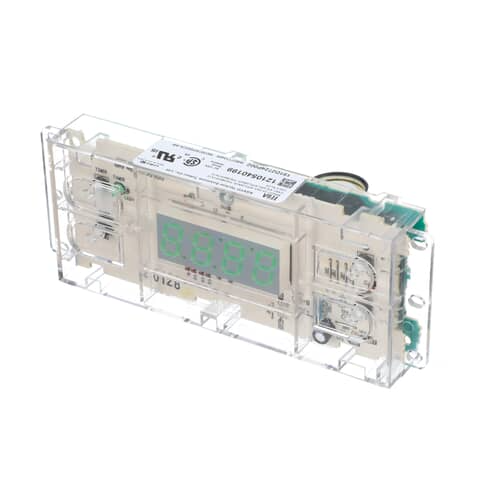

Control all primary oven functions, including timing and temperature, with the GE WB27T10469 Oven Electronic Control Board. This genuine OEM part is the main electronic clock assembly, which features an integrated Time-Of-Day (TOD) LED display. It is responsible for controlling bake, broil, self-clean functions, and the temperature-monitoring system. Replacing this board is the necessary fix if the display is blank, the timer functions incorrectly, or the oven is not heating or controlling the temperature as instructed.
Features & Benefits
- Genuine OEM electronic control board with integrated LED clock/timer display.
- Manages all oven functions: bake, broil, timer, and temperature regulation.
- Resolves issues related to display failure, unresponsive touchpads, or improper oven cycling.
- Comes pre-installed in a clear plastic housing for protection and easier installation.
Common Symptoms That Indicate Replacement
- The LED clock display is blank, dim, or shows garbled/missing digits.
- The oven timer will not advance or start.
- Oven functions (bake/broil) fail to turn on or shut off unexpectedly.
- The oven is overheating or underheating due to a failure in the temperature monitoring circuit on the board.
Compatible Models Include (Works with GE, Hotpoint, and related ranges)
- GE JCBS27WH2WW
- Hotpoint RB526DP2WW
- Kenmore 36271112000
- GE JGBS23BEH1BB
- GE JBS27SH1SS
Cross-Reference / Replaces: WB27T10469, 1086191, AP3427505, WB11K58, WB27K10028, WB27X10086
Compatibility Note: Always disconnect power before replacing the control board. For many models, you will need to peel the original decorative overlay (or faceplate) from the old board and carefully affix it to the new one.
