Description:

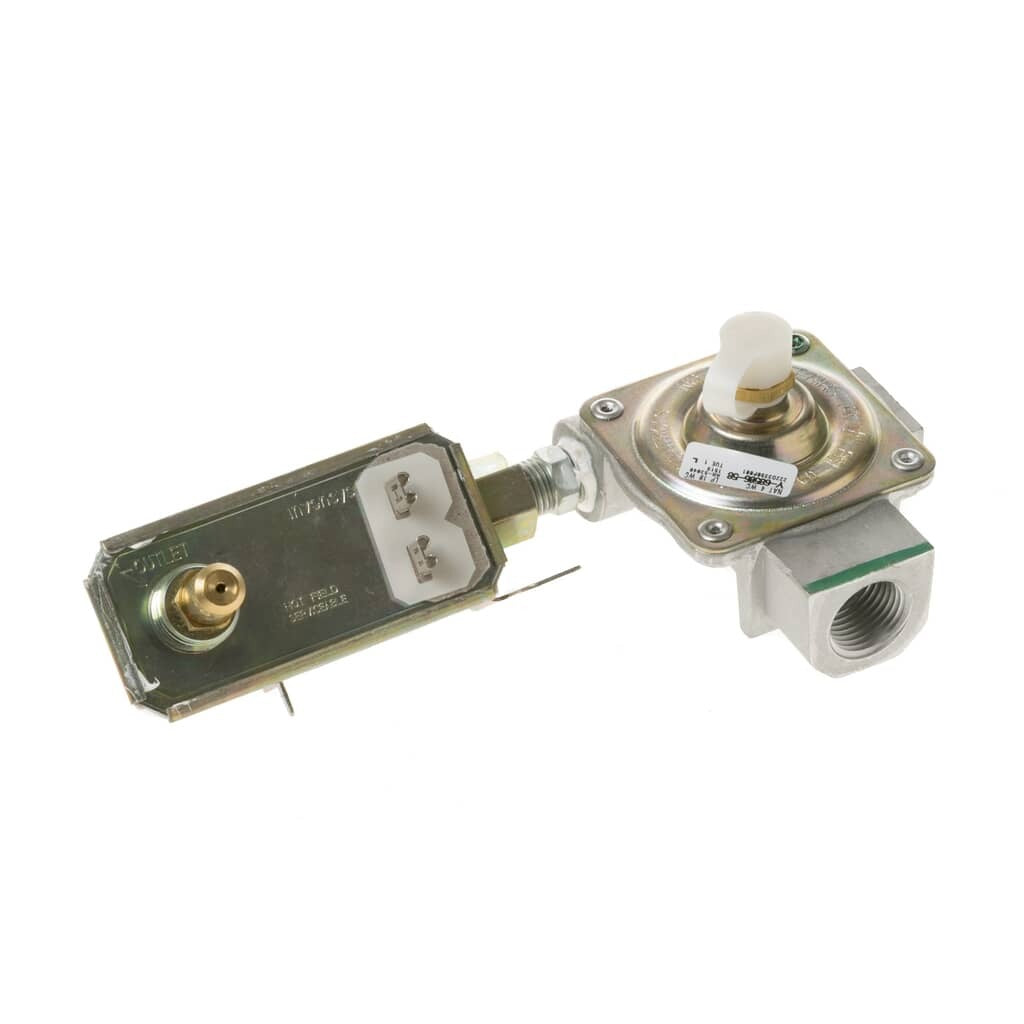

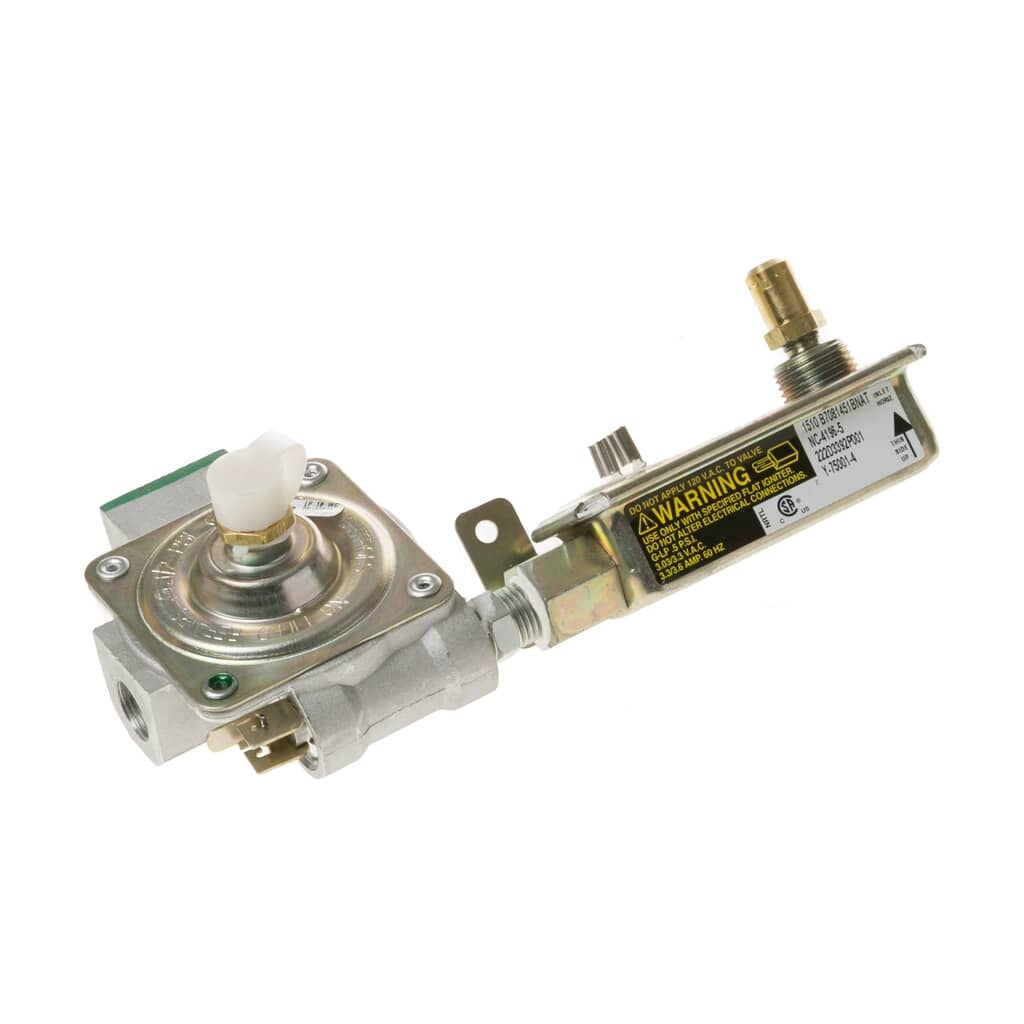

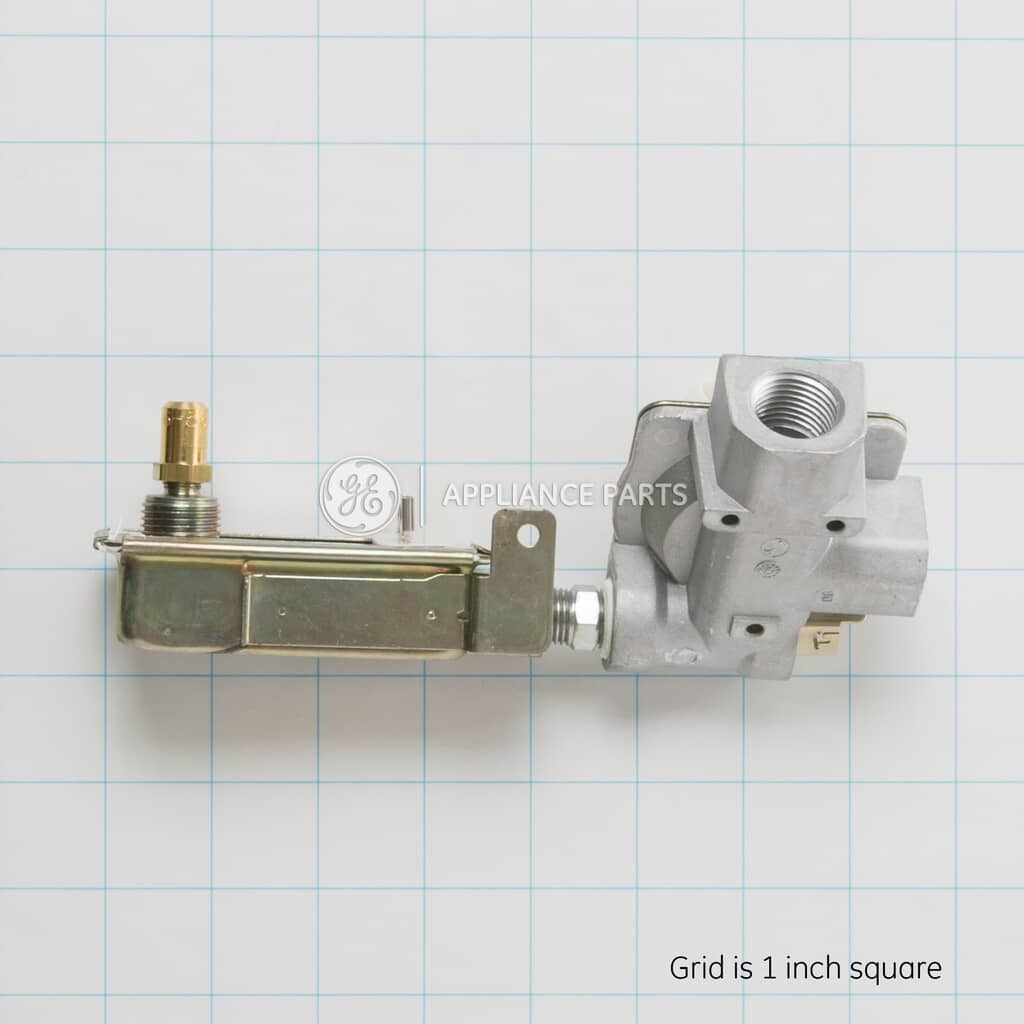

Ensure the safe and accurate operation of your oven burner with the GE WB19K10044 Gas Control Valve Assembly. This genuine OEM part is a combined unit consisting of the Oven Safety Valve (which works with the igniter to release gas) and the Gas Pressure Regulator (which maintains a steady gas pressure). This critical component is designed to regulate the gas flow to the oven burner for precise temperature control during baking and broiling in your GE, Hotpoint, or compatible gas range.
Features & Benefits:
- Dual Function: Serves as both the safety valve (controlling gas flow based on igniter heat) and the pressure regulator.
- Enhanced Safety: Prevents gas from being released to the burner until the igniter reaches the correct temperature.
- Consistent Heating: Ensures a stable gas flow and pressure for accurate oven temperatures.
- OEM Quality: Engineered for durability and precise fitment within the range manifold system.
Common Symptoms That Indicate Replacement:
- The oven igniter glows red but the burner never lights (a common safety valve failure).
- The oven temperature is inconsistent or fails to reach the set temperature.
- A faint gas odor is present when the oven is in use.
- The existing valve is visibly damaged, leaking, or corroded.
Compatible Models Include:
- 9114522190 (Kenmore)
- 3636204190 (Hotpoint)
- JGBS23WEH3WW
- RGB533WEH4WW
- JGBS22BEH3WH
Cross-Reference / Replaces:
WB19K10044, AP4513972, 1621563, WB19K10009, WB19K10002, PS2577552
Compatibility Note:
Gas valve installation requires strict safety protocols. Always shut off the main gas supply and electrical power before servicing. Gas leak tests must be performed after installation.
