GE WB17X5095 Range/Cooktop Power Terminal Block Kit – OEM Replacement

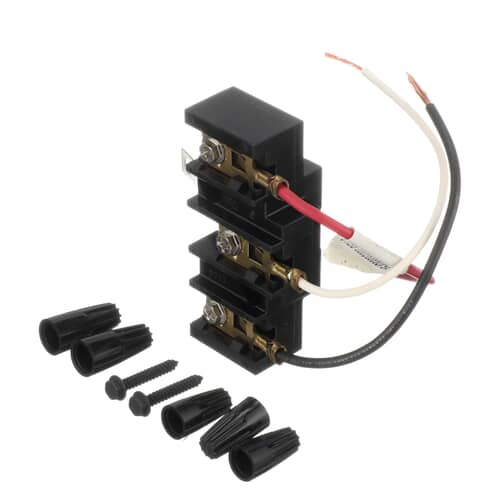

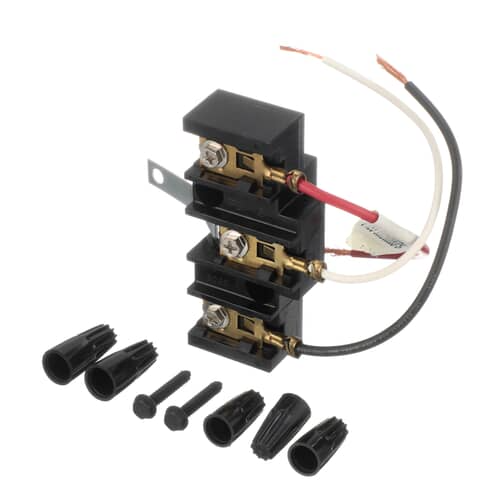

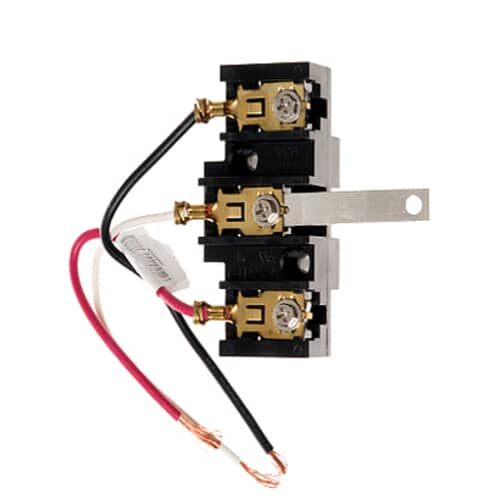

The "WB17X5095 Power Terminal Block" is the insulated component located at the back of the range or cooktop where the main electrical supply cord connects to the appliance's internal wiring. It provides three connection posts (Line 1, Neutral, Line 2) to safely distribute power. If the terminal block is visibly melted, cracked, or corroded—often due to loose connections or electrical surges—this kit provides a complete replacement, including the necessary mounting screws and wire nuts for a safe and secure connection.
Features and Benefits
- Restores Safe Power Connection: Replaces a melted or damaged block to ensure safe electrical continuity.
- Complete Kit: Includes the terminal block assembly, mounting screws, and wire nuts for a full installation.
- Durable and Insulated: Made from high-temperature plastic and metal terminals to handle high electrical loads.
- Genuine OEM Quality: Guarantees a direct fit and reliable performance for your GE appliance.
Common Symptoms That Indicate Replacement
- Visible melting, cracking, or burning damage to the plastic housing of the existing terminal block.
- Loose or corroded screws on the terminal posts.
- Intermittent power to the entire range or intermittent heating of all elements.
Compatible Models Include
(This terminal block is a common part and fits many GE, Hotpoint, and Kenmore range and cooktop models. Always check your specific appliance model number for definitive compatibility.)
- JBP24BW2WH
- JGS650SEF2SS
- JGBP26DEM3CC
Cross-Reference / Replaces
WB17X5095 (BLOCK TERMINAL POWER)
Compatibility Note
Always disconnect the main power supply (circuit breaker) before accessing the terminal block. Ensure that all wire connections are tight and correctly positioned to prevent arcing and overheating of the new terminal block.
