Description

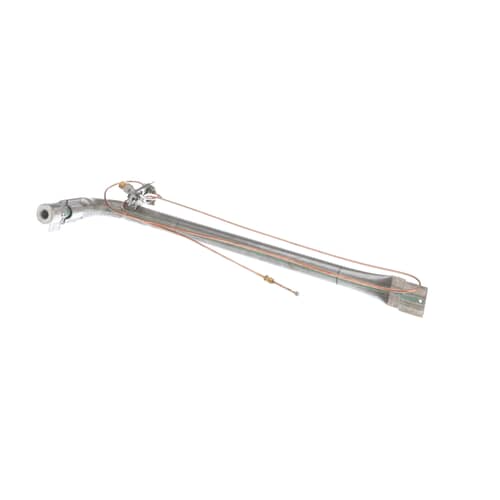

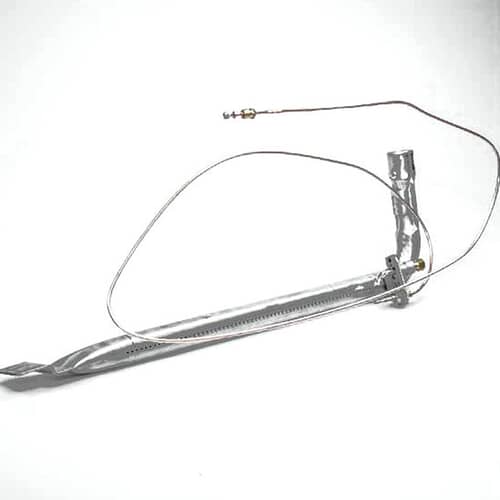

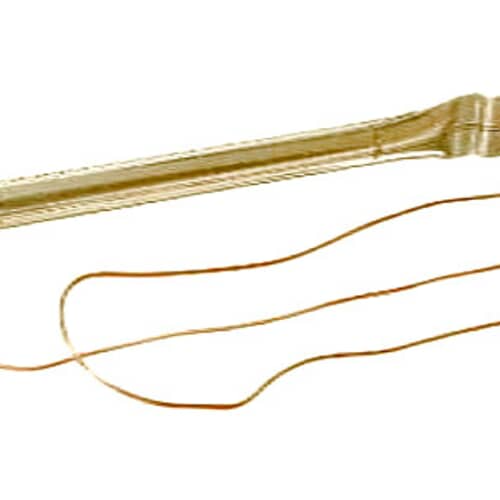

Restore safe and reliable ignition to your gas oven with the GE WB16K10061 Oven Burner and Pilot Assembly. This genuine OEM metal assembly includes the perforated burner tube and the standing pilot assembly with an attached thermocouple (thermal coupler). This component is responsible for igniting the main burner flame and ensuring the gas valve remains open during the cooking cycle, which is essential for maintaining accurate oven temperatures in your GE or Hotpoint gas range.
Features & Benefits:
- Complete Gas Assembly: Includes the burner tube and the standing pilot light assembly with thermal coupler.
- Reliable Ignition: Fixes burners that fail to light or pilot lights that go out during the cooking cycle.
- Safety Critical: The thermal coupler ensures the gas valve shuts off if the pilot flame is extinguished.
- Durable Construction: Made from high-quality metal engineered to withstand continuous heat exposure.
Common Symptoms That Indicate Replacement:
- The oven pilot light will not stay lit, causing the main burner to fail.
- The oven burner flame is weak or uneven.
- The oven fails to heat up, but gas is confirmed to be flowing to the appliance.
Compatible Models Include:
- AGBS300PJ1WW
- AGBS300PK1BB
- JGBS04PPH1WH
- 36262020300 (Kenmore)
- RGB508PPT1WH (Hotpoint)
Cross-Reference / Replaces:
WB16K10061, AP3886709, 1194737, WB19K10008, WB16K10041, PS1154893
Compatibility Note:
This assembly is for standing pilot gas systems. Always shut off the main gas supply and electrical power before installation. Gas components should be installed by a qualified individual for safety.
