Description

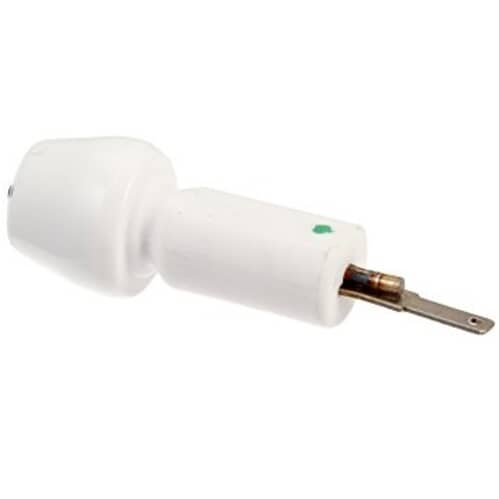

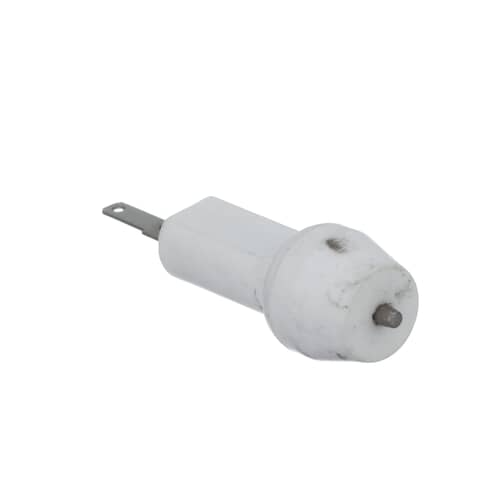

Restore immediate and reliable ignition to your gas stovetop burners with the **GE WB13K18 Surface Burner Spark Electrode**. This genuine OEM part is the ceramic and metal rod component located near the burner head that generates the spark when electricity is sent from the spark module. A damaged, cracked, or worn electrode will cause inconsistent sparking or complete ignition failure, preventing your burner from lighting properly.
Features & Benefits:
- **Reliable Sparking:** Generates the high-voltage spark required to ignite the gas flowing from the burner head.
- **Durable Ceramic:** Insulates the electrical connection to ensure the spark is directed to the gas.

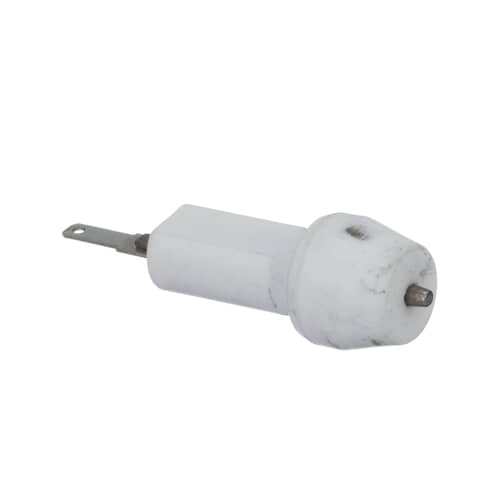

- **Easy Replacement:** Simple, cylindrical design with a spade connector for easy integration into the burner assembly.
- **OEM Fit:** Ensures the correct placement relative to the burner head for optimal ignition performance.
Common Symptoms That Indicate Replacement:
- Burner fails to light, but you hear clicking from the spark module/other burners.
- The electrode is visibly cracked, chipped, or corroded.
- The burner sparks inconsistently or not at all.
Compatible Models Include:
- 3627556892
- 3627516891
- JGBP30WEW1WW
- JGP336BEV2BB
- JGBP30BEW1WH
Cross-Reference / Replaces:
WB13K18, AP2020568, 244916, AH231276, EA231276, PS231276, WB13K0018
Compatibility Note:
**Always shut off the gas supply and disconnect electrical power** before replacing the electrode. Wear gloves, as electrodes and igniters are sensitive to oils from your skin.
If you need help replacing this part, check out this guide on how to safely [Replace A Spark Electrode on a GE Gas Range](https://www.youtube.com/watch?v=JLzoGdj1yu0). http://googleusercontent.com/youtube_content/3
