Product Description

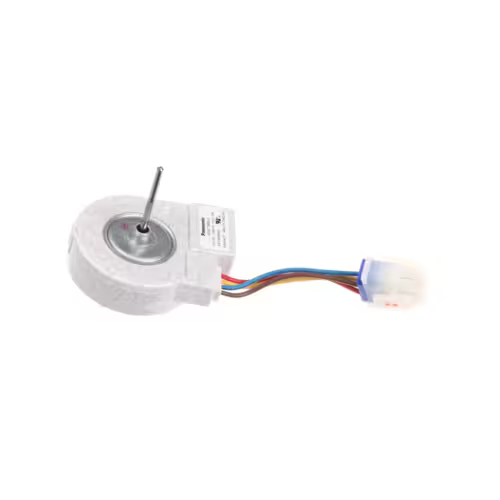

Restore crucial airflow to your refrigerator’s cooling system with the OEM Evaporator Fan Motor part number 809069220, made for use in compatible models from the Frigidaire and Electrolux brands. This motor drives the evaporator fan, helping maintain consistent temperature, preventing frost build-up on the evaporator coil, and ensuring efficient cooling.
Because fan motors differ by mounting bracket, shaft length, wire harness and model year, please check with your maintenance technician prior to ordering to verify that 809069220 is correct for your unit. frigidaireapplianceparts.com+3applianceparts.lowes.com+3deyparts.com+3
Features & Benefits
-
Genuine OEM: Part 809069220 listed as an original motor for Frigidaire / Electrolux refrigerators. frigidaireapplianceparts.com+1
-
Ensures proper airflow: Keeps air moving over the evaporator coil, essential for preventing excessive frost and maintaining proper temperature. Part Advantage+1
-
Durable construction: Built for the refrigeration environment, designed for long service life under normal operating conditions.
-
Cost-effective repair: Replaces a critical failure point without needing to replace the entire cooling system.
-
Verified compatibility lists: Many compatible model numbers listed (see compatibility note below). Part Advantage+1
Common Symptoms That Indicate Replacement Is Needed
-
Freezer or refrigerator section not reaching proper temperature despite compressor running.
-
Ice or frost forming on the evaporator coil, or visible coil frost that doesn’t melt during defrost cycle. deyparts.com+1
-
Noise coming from the freezer compartment (humming, grinding) indicating fan motor struggle or bearing wear.
-
Weak or no airflow from freezer vents when the door is open or compressor is running.
-
Frequent defrost cycles or extended run times—poor airflow can lead to inefficiency and overwork.
Cross Reference / Alternate Numbers
This motor is listed as replacing or equivalent to:
-
241509401 & 241509402 deyparts.com+1
-
7241509402 a-1appliance.com
Always verify your existing part number before purchasing.
Compatibility Notes
-
Measure and check your existing motor’s mounting bracket, shaft length, wiring harness and connector. Even among compatible models, variations can exist.
-
If the evaporator fan motor has failed, inspect associated components: fan blade, motor mount, housing clearance, wiring connections and defrost system, as fan failure can contribute to or stem from other issues.
-
Ensure power is disconnected before servicing the motor. Replacement often requires removal of the freezer back panel and accessing the evaporator compartment.
-
While replacing the motor addresses airflow failures, it will not fix other issues like refrigerant leaks, compressor failure or severe coolant blockages.
