Description

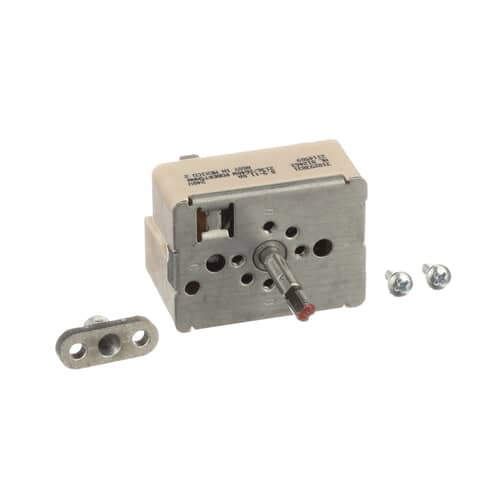

Restore reliable and adjustable heat control to your electric cooktop with the Electrolux 903136-9020 Surface Element Infinite Switch. This genuine OEM component, typically used for an 8-inch burner element, regulates the power supply to the heating coil, allowing you to cycle between various heat settings. A malfunctioning switch can cause the burner to stick on high heat or fail to activate entirely, compromising your cooking. This switch kit includes a new mounting bracket and screws for installation.
Features & Benefits:
- **Precise Control:** Provides variable heat adjustment (infinite control) for a single surface element.

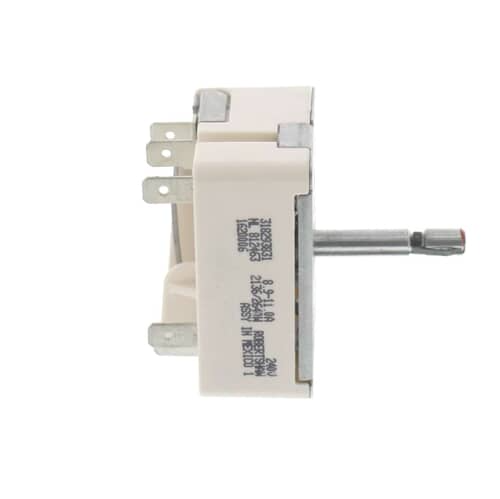

- **OEM Electrical Specs:** Rated at 240V for safe and reliable compatibility with specified elements.
- **Figure 8 Shaft:** Designed with the push-to-turn D-shaped shaft for proper knob fitment.
- **Easy Repair:** Includes necessary hardware (bracket and screws) for securing the switch to the control panel.
Common Symptoms That Indicate Replacement:
- Surface burner element remains stuck on the maximum heat setting.
- The element fails to heat up at all when turned on.
- Burner only engages after turning the knob past a certain point (e.g., past setting #3).
- The control knob feels loose or turns without resistance.
Compatible Models Include:
- 79045062400 (Kenmore)
- BFES368EC1
- CFES355EB1
- 79045482500
- FES367DSC
Cross-Reference / Replaces:
903136-9020, AP4368336, 1486478, 318220021, 318220081, 318369616
Compatibility Note:

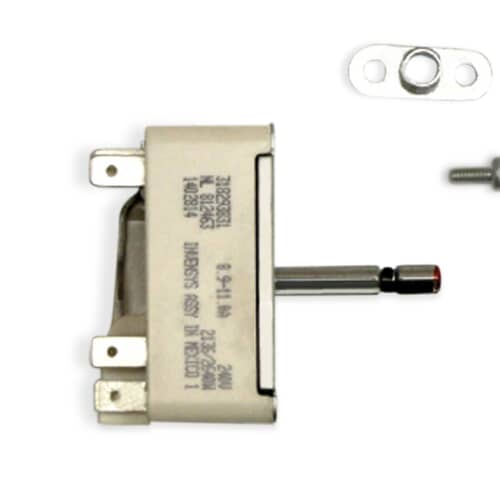

This switch is typically used for a single (standard) 8-inch element. Always visually compare the terminal locations and reference the wire codes (H1, L1, P, etc.) from your old switch to the new one before connecting, and **disconnect all power** before beginning the repair.
