Description

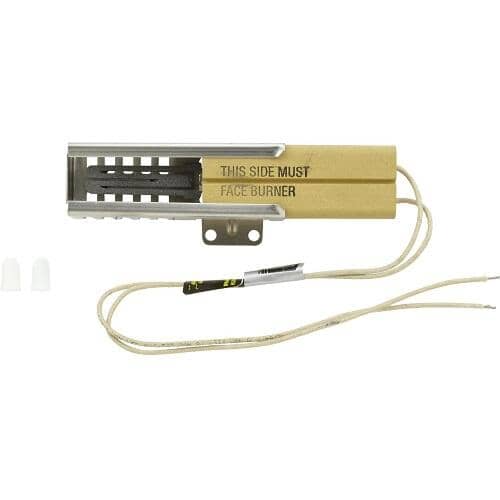

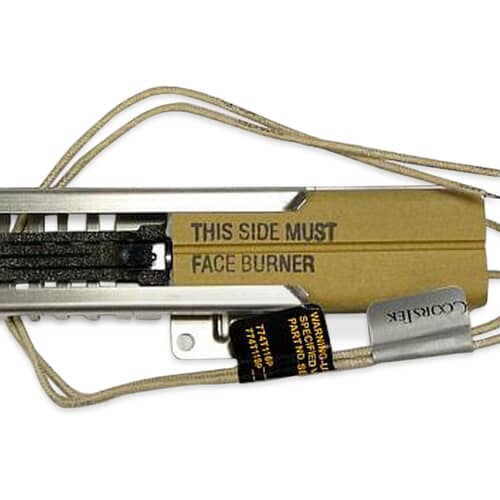

Restore the gas ignition in your oven with the Electrolux 5303935067 Flat Style Oven Ignitor. This genuine OEM component is a hot surface igniter that heats up to a high temperature. It must reach a specific thermal resistance (amperage range 3.2-3.6A) to signal the oven safety valve to open and release gas, which is then ignited by the hot igniter. Replacement is necessary when the igniter is too weak to open the gas valve, causing the burner to fail to light.
Features & Benefits:
- Gas Safety Function: Heats up to allow the oven safety valve to release gas for combustion.
- Flat Style Design: The ceramic flat bar igniter is a common type used in many gas oven models.

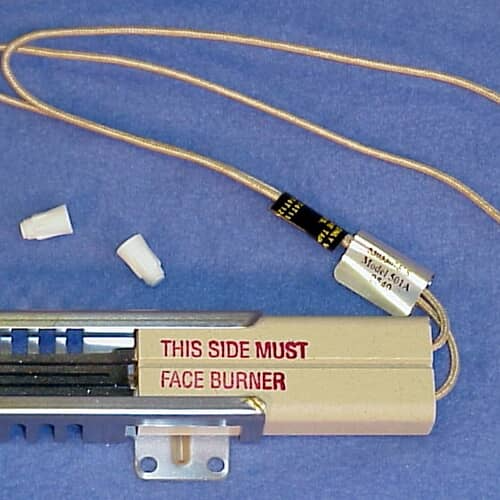

- Complete Kit: Includes the igniter element with mounting bracket and ceramic wire connectors for splicing.
- Reliable Ignition: Ensures fast and safe lighting of the bake or broil burner assembly.
Common Symptoms That Indicate Replacement:
- The igniter glows brightly for over 90 seconds, but the gas burner never lights.
- The oven does not heat up at all.
- The igniter is visibly cracked, brittle, or charred.
Compatible Models Include:
- FFGF3015LWF
- GWT445RGS1
- 30-2632-02 (Tappan)
- 790.71559600 (Kenmore)
- GF780KXD2 (White-Westinghouse)
Cross-Reference / Replaces:
5303935067, AP2150413, 08011454, 316T023P05, 5303016211, PS470130
Compatibility Note:
This is an oven igniter, not a surface burner igniter. Always shut off the gas supply and electrical power before installation. The included connectors are for splicing the new igniter wires to the original harness (the old plug may need to be cut off).
