Description

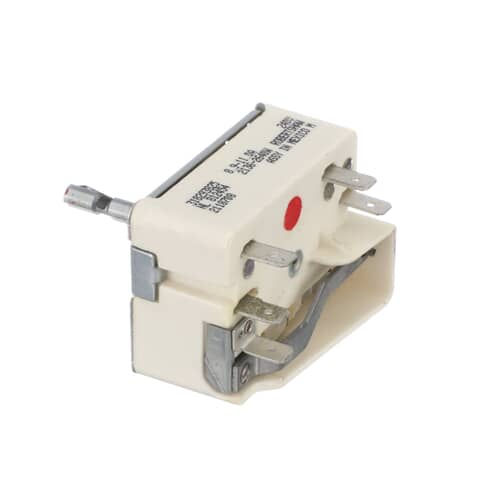

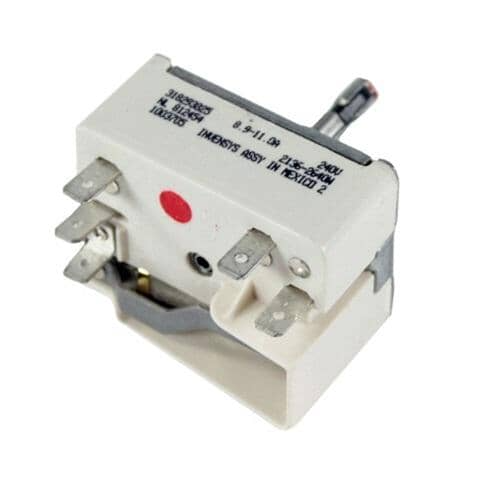

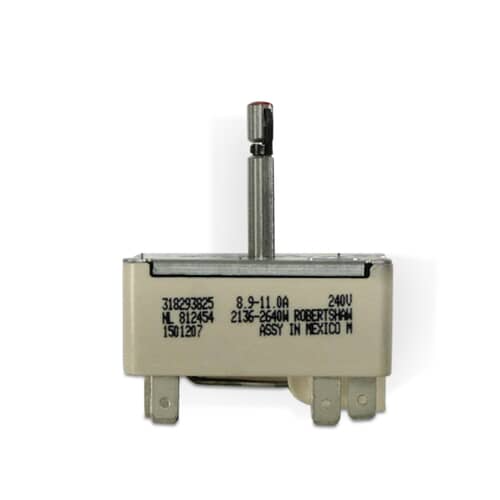

Restore precise heat control to your large electric cooktop element with the Electrolux 318293825 Infinite Control Switch. This genuine OEM switch regulates the power cycle to the higher-wattage surface elements (rated 8.9-11.0 Amps / 2136-2640 Watts at 240V) commonly used for 8-inch or dual elements. The switch, manufactured by Invensys/Robertshaw, uses a thermal cycling system to provide variable heat output from low to high. If your large burner remains stuck on high or fails to heat, this switch needs replacement.
Features & Benefits:
- Large Element Rating: Calibrated for high-wattage 8-inch electric elements.
- Precise Control: Provides variable (infinite) regulation of heat intensity for consistent cooking.
- OEM Quality: Features clear terminal markings (L1, L2, H1, H2, P) and is manufactured to stringent specifications.
- Standard Shaft: Includes a shaft for attaching the control knob (knob sold separately).
Common Symptoms That Indicate Replacement:
- The large surface element stays permanently on high heat.
- The element will not turn on or heat up at all.
- The switch shaft or mechanism is mechanically broken or melted.
Compatible Models Include:
- FEC30S6ABF
- FFEC3225LWA
- RC30DE60PB0
- 790.42721700 (Kenmore)
- FEC36S6EBA
Cross-Reference / Replaces:
318293825, AP4362288, 318220012, 318369610, PS2342881
Compatibility Note:
This switch may require new mounting screws (part number 5303323134 is often needed) as the old ones may damage the new housing. Always shut off the circuit breaker for the range before installing this part.
