Description

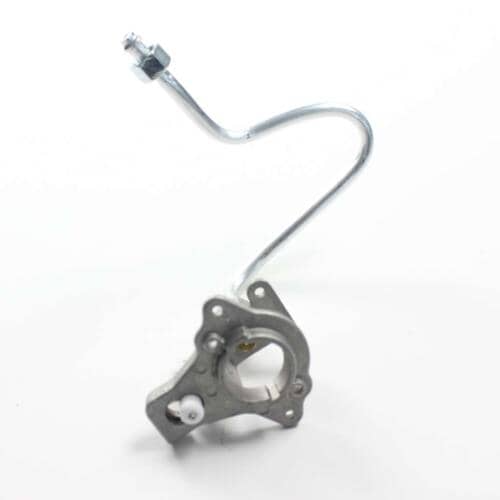

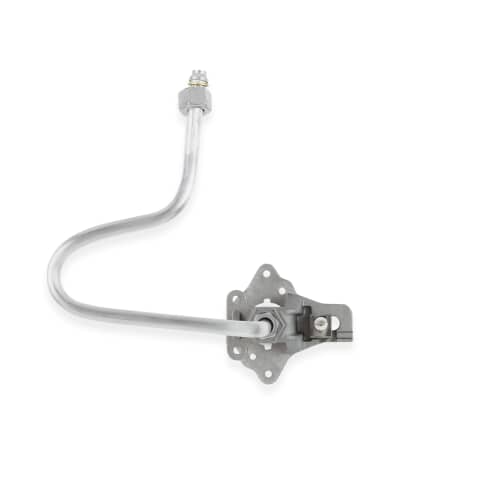

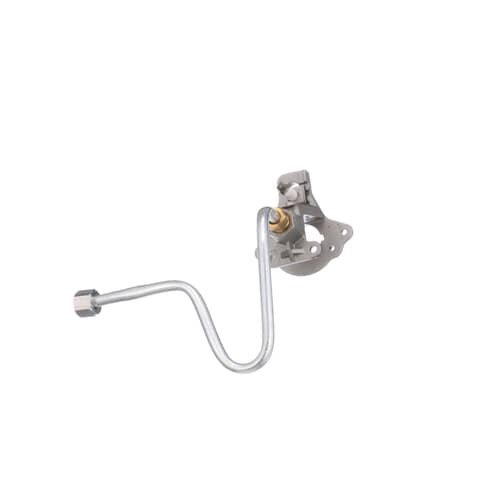

Restore safe and reliable ignition to your gas cooktop with the Electrolux 316536602 Gas Range Top Burner Ignitor/Orifice Assembly. This genuine OEM assembly is an integrated unit that includes the gas delivery tube, the orifice holder (which holds the gas jet), and the igniter electrode wire. It ensures that the correct amount of gas is mixed and delivered to the burner head, where the igniter then produces the spark needed for ignition. This specific part is often designated for the Left Front 9.5K BTU burner on compatible gas ranges.
Features & Benefits
- Genuine OEM assembly that combines the gas orifice holder and spark igniter.
- Regulates gas flow and provides the spark for consistent burner ignition.
- Resolves issues of burners failing to light or producing an irregular flame.
- Typically used for the 9,500 BTU surface burner position.
Common Symptoms That Indicate Replacement
- Surface burner fails to light, despite hearing the igniter click from other burners.
- Flames are weak, yellow, or irregularly shaped, indicating a gas flow issue (blocked orifice).
- The electrode tip of the igniter is cracked or broken.
- Gas is detected at the burner when attempting to light, but no spark occurs.
Compatible Models Include (Works with Frigidaire, Kenmore, and related gas ranges)
- Frigidaire FFGF304DPFA
- Kenmore 790.70502010
- Frigidaire CGLGF389GSD
- Frigidaire FGF368GSF
- Kenmore 790.72312012
Cross-Reference / Replaces: 316536602, 1466115, AP4356472, 316536603, PS2332710
Compatibility Note: Shut off the gas supply and disconnect electrical power before installation. This assembly directs the gas, so it is critical that you verify this part number is correct for the specific burner position you are repairing.
