Description

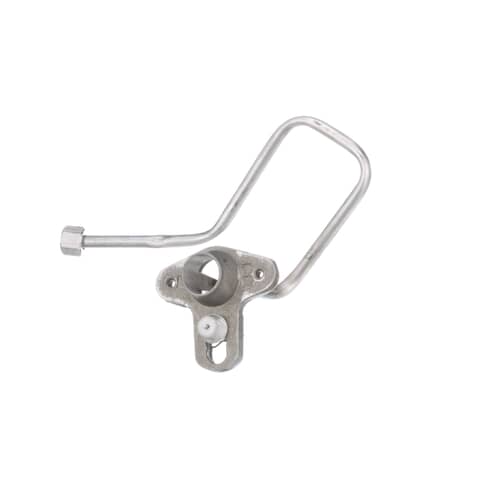

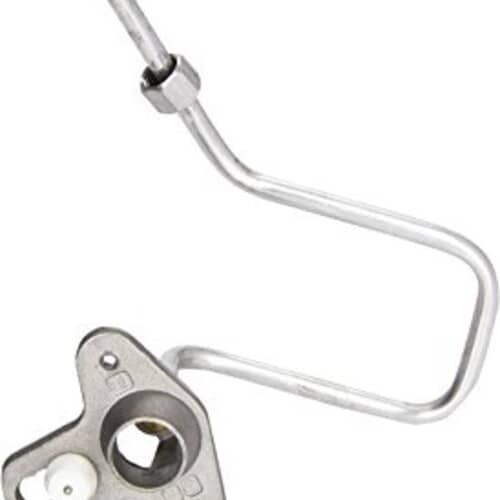

Ensure safe and effective ignition for your gas cooktop burner with the Electrolux 316237805 Ignitor/Orifice Assembly. This genuine OEM part combines the fixed brass orifice (which regulates gas flow) and the porcelain spark electrode (the igniter). This complete assembly is essential for reliably lighting the surface burner on your Frigidaire, Kenmore, or compatible gas range, replacing damaged or leaking components.
Features & Benefits:
- 2-in-1 Assembly: Combines the spark igniter and the orifice holder for a single, critical replacement.
- Precise Gas Control: The fixed orifice ensures the correct amount of gas is delivered for the corresponding burner size.Reliable Spark: Includes the electrode to generate the spark needed for ignition.
- OEM Fit:** Designed for accurate alignment inside the gas manifold and under the burner head/cap.
Common Symptoms That Indicate Replacement:
- Gas smell when the burner valve is on (suggesting a leak at the tube/orifice connection).
- Burner fails to light despite audible clicking from the spark module.
- The porcelain insulator of the electrode is cracked or broken.
- Inconsistent or uneven flames due to a misaligned or damaged orifice/holder.
Compatible Models Include:
- 31-4668-00-01 (Frigidaire/Tappan)
- 31-4668-00-04 (Frigidaire/Tappan)
- FGF337GWD
- TGF336ASA (Tappan)
- 79071202704 (Kenmore)
Cross-Reference / Replaces:
316237805, AP4362358, 1483943, 316237800, 7316237800, 7316237805, PS2332312
Compatibility Note:
Always **shut off the gas supply and disconnect electrical power** before performing this repair. Note the position of the orifice tube/ignitor for the burner you are replacing (e.g., front left).
