Description

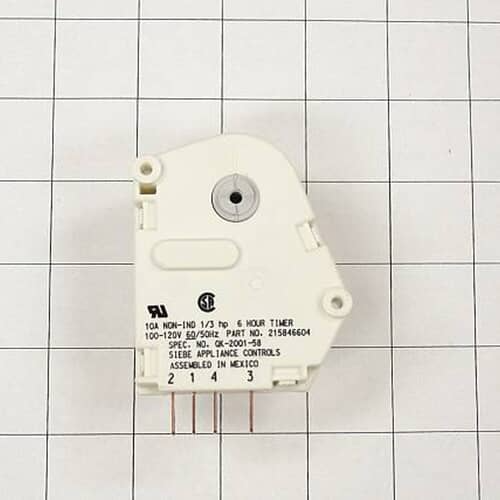

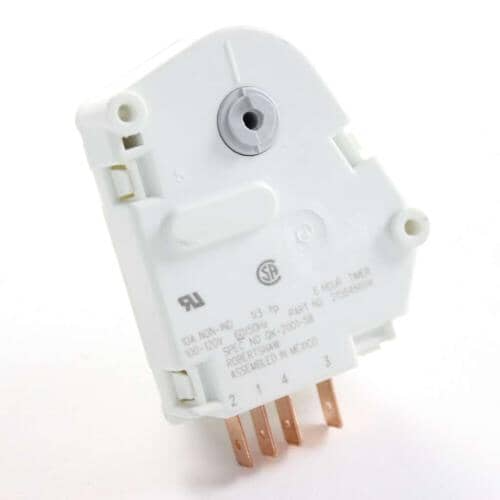

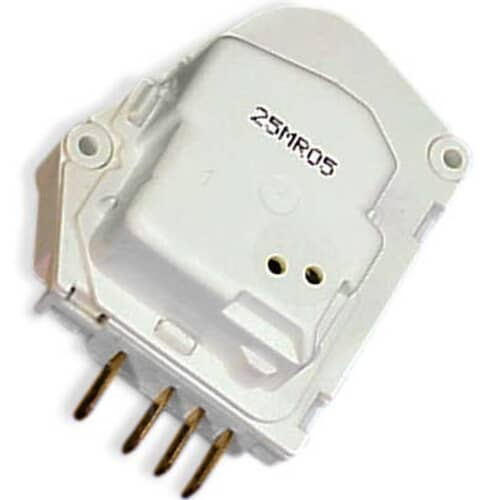

Restore precise timing for your appliance's defrost cycles using the Electrolux 215846604 Defrost Timer. This OEM-style component controls the timing mechanism, ensuring your refrigerator or freezer defrosts at the correct interval (typically every 6 hours).
Features & Benefits:
- Controls the timing sequence for the refrigerator's automatic defrost operation.
- Rated for 120V operation at 60 Hz, with specific amperage ratings for motor and switch loads.
- Features multiple spade terminals for integration into the main appliance control circuit.
- An easy-to-replace component that resolves defrost system failures.
Common Symptoms That Indicate Replacement:
- Excessive ice buildup in the freezer compartment.
- Refrigerator runs too long because the defrost cycle never initiates.
- The timer mechanism is stuck or fails to advance to the defrost mode.
Compatible Models Include:
- 25361733901
- FFHI1817LS7
- 25361732805
- LGHT1837NF5
- 9517872302
Cross-Reference / Replaces: 215846604
Compatibility Note: Defrost timers are sensitive electrical parts. Always unplug the appliance before disconnecting wires, and ensure the new timer is mounted securely.
