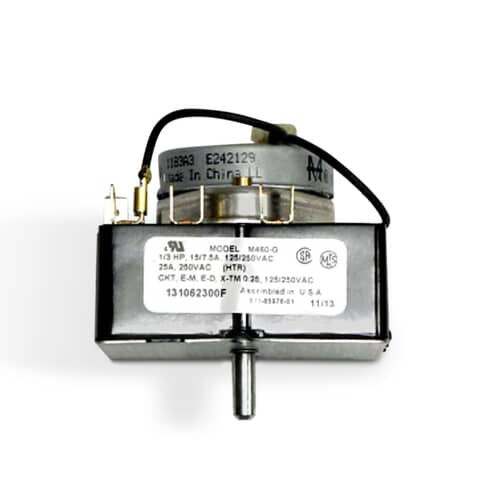

A side profile view of the timer module, showing the label detailing electrical ratings (e.g., 1/3 HP, 25A, 250VAC) and the metal shaft.

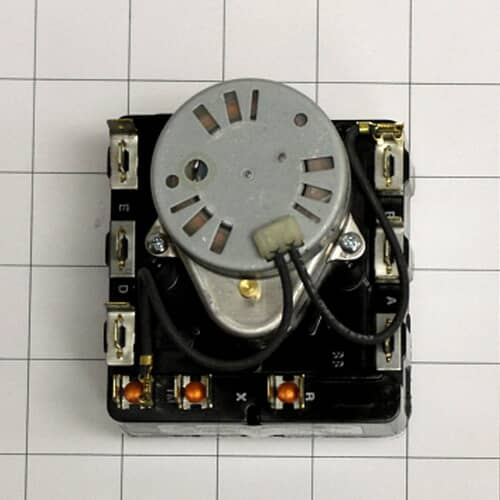

The back of the Electrolux dryer timer against a white grid, showing the metallic motor housing and various electrical connection tabs.

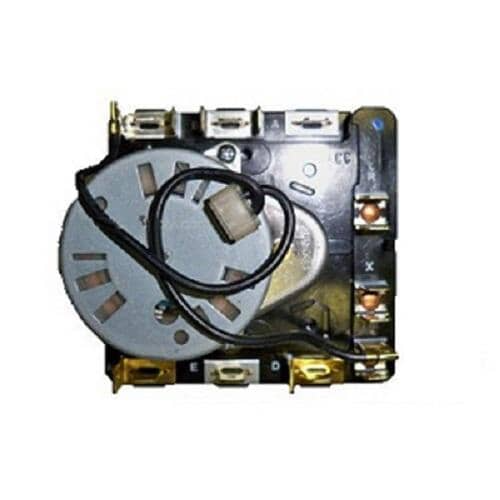

An overall view of the timer component against a white grid, highlighting the small, silver circular timing motor.
Roll over image to zoom in Click on image to zoom
A side profile view of the timer module, showing the label detailing electrical ratings (e.g., 1/3 HP, 25A, 250VAC) and the metal shaft.The back of the Electrolux dryer timer against a white grid, showing the metallic motor housing and various electrical connection tabs.An overall view of the timer component against a white grid, highlighting the small, silver circular timing motor.

Electrolux 131062300 Dryer Timer – OEM Replacement

A3 Appliance Supply, Inc.
Price:
$193.79

Login to see wholesale pricing.

Description

Restore precise cycle management to your Electrolux dryer with the genuine 131062300 Dryer Timer. This electromechanical component dictates how long each drying phase lasts and controls the internal electrical circuits for heat and motor operation.

Features & Benefits:

  • Controls the precise duration and sequence of the dryer cycle.
  • OEM Electrolux part ensures accurate timing control compared to universal replacements.
  • Features a mechanical motor and multiple electrical switching tabs for reliability.
  • Restores proper cycle termination if the dryer runs too long or stops prematurely.

Common Symptoms That Indicate Replacement:

  • The timer dial fails to advance during the cycle.
  • Dryer runs indefinitely on one setting or stops randomly.
  • Knob does not line up correctly with cycle markings due to internal mechanism failure.

Compatible Models Include:

  • 30-2262-23-01
  • 47-2151-23-02
  • 47-2251-00-05
  • 47-2251-23-05
  • CE303VC3W1

Cross-Reference / Replaces: 131062300

Compatibility Note: Always ensure the dryer is unplugged before disconnecting wires from the timer terminals. Take clear photographs of the existing wire connections for reference during installation.
