Description
Maintain precise and reliable heating control in your Samsung dryer with the genuine DC47-00015A Operating Thermostat. This component cycles the heating element on and off to maintain the selected temperature, ensuring clothes dry efficiently without overheating.
Features & Benefits:
- Regulates the operating temperature by switching the heating circuit on and off.

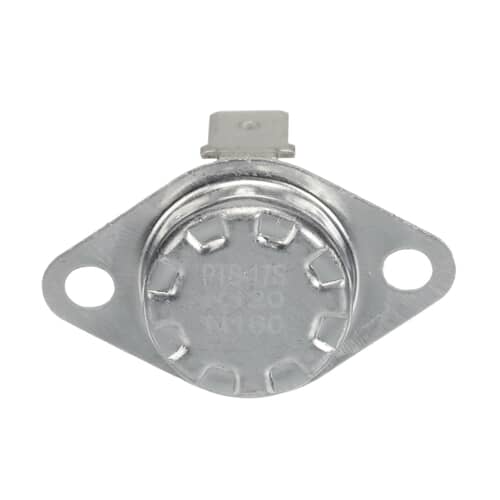

- Genuine Samsung OEM part guarantees correct temperature calibration (e.g., 160°F cut-out rating).

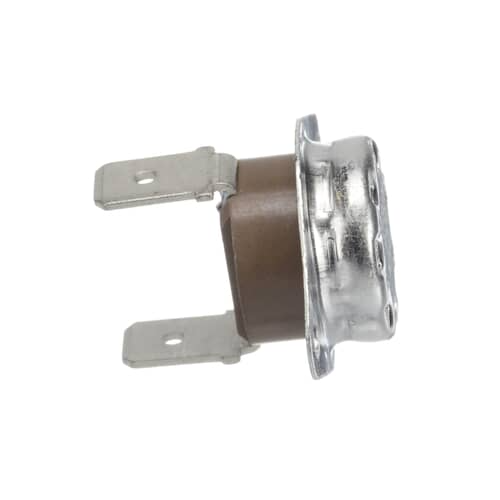

- Features dual spade terminals for easy electrical connection.
- Robust metal casing and mounting bracket ensure secure placement within the heating chamber.
Common Symptoms That Indicate Replacement:
- Dryer fails to get hot, or runs hot continuously (stuck closed).
- Dryer runs but cycles between hot and no-heat too quickly (short cycling).
Compatible Models Include:
- DV456EWHDSU/AA
- DV511AER/XAA
- DV306LEW/XAA
- DV395ETPASU/A1
- DV48H7400EW/A2
Cross-Reference / Replaces: DC47-00015A
Compatibility Note: If this thermostat is faulty, it is important to also check the high-limit thermostat and the thermal fuse, as they all work together to manage dryer temperature.
