Description
Product Description

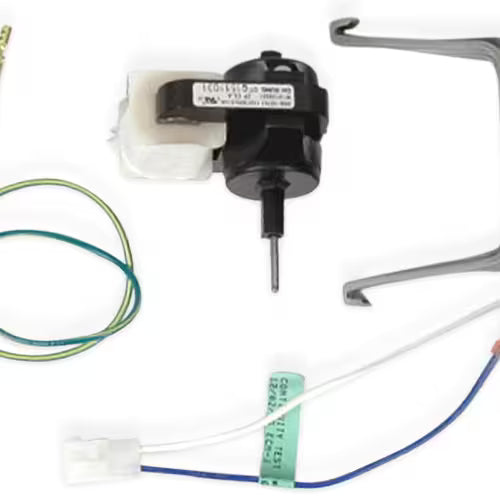

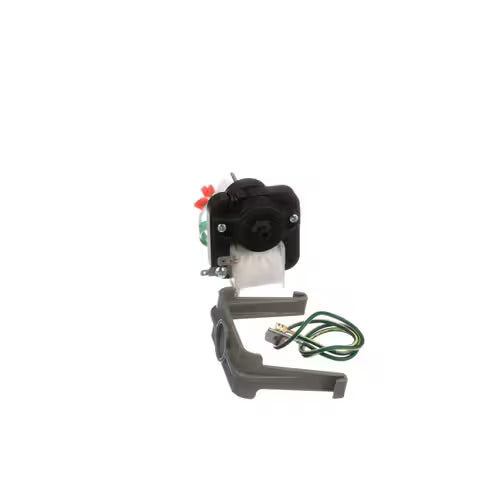

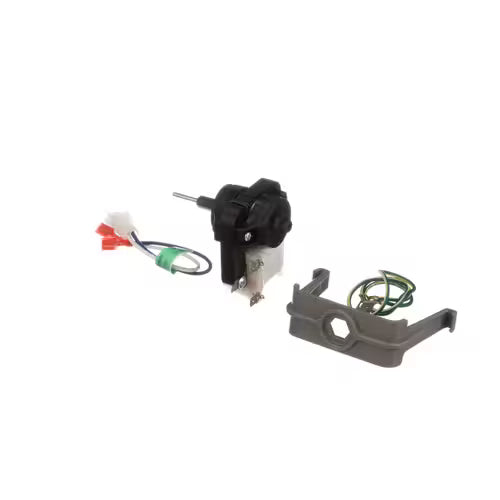

Restore proper airflow in your refrigerator’s evaporator compartment with the 12002744 Evaporator Fan Motor. This replacement motor is compatible with many models of Whirlpool, Maytag, Kenmore, Amana and related brands. It is designed to fit in the evaporator fan assembly behind the freezer liner and help maintain efficient cooling by circulating air over the evaporator coils. Because motor mounts, shaft lengths and wiring harnesses can vary by model, please check with your maintenance technician prior to ordering to ensure correct fit and wiring.
Features & Benefits
-
Direct replacement for part 12002744 with the following specs: 120 V, 60 Hz, 0.14 A, ~3000 RPM, 1-3/8" shaft, and 3-terminal connection (two ¼″, one 3⁄16″) Highway 61 Appliance Parts+2Snap Supply+2
-
Restores evaporator fan operation, ensuring proper airflow across coils and helping your fridge reach correct temperatures faster.
-
Helps avoid common symptoms of failed fan motor: long run-times, freezer warm, ice buildup in freezer compartment.
-
Aftermarket option ensures cost-effective repair and avoids the expense of replacing major refrigeration components.
-
Broad compatibility across multiple brands and model series, making it a flexible parts solution. Appliance Zone+1
Common Symptoms That Indicate Replacement Is Needed
-
Freezer or fresh-food compartment no longer holds temperature despite compressor working.
-
Noticeable ice or frost build-up on the evaporator coils (behind the freezer liner wall).
-
Fridge runs continuously or much longer than usual but doesn’t cool efficiently.
-
Unusual noise coming from the freezer compartment (fan motor humming or stalling).
-
The evaporator fan is not turning when freezer door is open and you listen for airflow.
-
Freezer feels warmer than normal and chilling is compromised.
If you experience any of these, the evaporator fan motor could be the culprit — but again, check with a qualified technician to confirm it’s the correct part for your unit.
Compatible Models (Partial List)
This motor is listed as compatible with many Whirlpool/Maytag/Amana/Kenmore refrigerators that specify part 12002744 (or its equivalents). Examples include units referencing replacement numbers such as AP4009649, 67003917, 67006515. HD Supply Solutions+1
(Note: Partial list only — verify your model number, liner arrangement and harness connector before ordering.)
Cross Reference
Part 12002744 is compatible with or replaces:
-
12002744VP HD Supply Solutions+1
-
67003917 Appliance Zone+1
-
67006515 Highway 61 Appliance Parts+1
-
AP4009649, PS2004031 eBay
-
SM2744 NSI Industries
Compatibility Notes
-
Verify your existing fan motor’s shaft length, mounting bracket, wiring terminal configuration and voltage match this replacement.
-
Even though you’re replacing the motor, you should have your technician check the entire evaporator area: ensure the coil is free of frost, the fan blade is intact, mounting is secure, and wiring is correct.
-
While this part addresses airflow problems, it does not fix compressor failures, refrigerant leaks or other cooling system issues — those will require broader repair.
-
Because installation involves working inside the freezer compartment (often removing the liner panel), a technician or qualified installer is recommended to ensure safe, correct installation.
